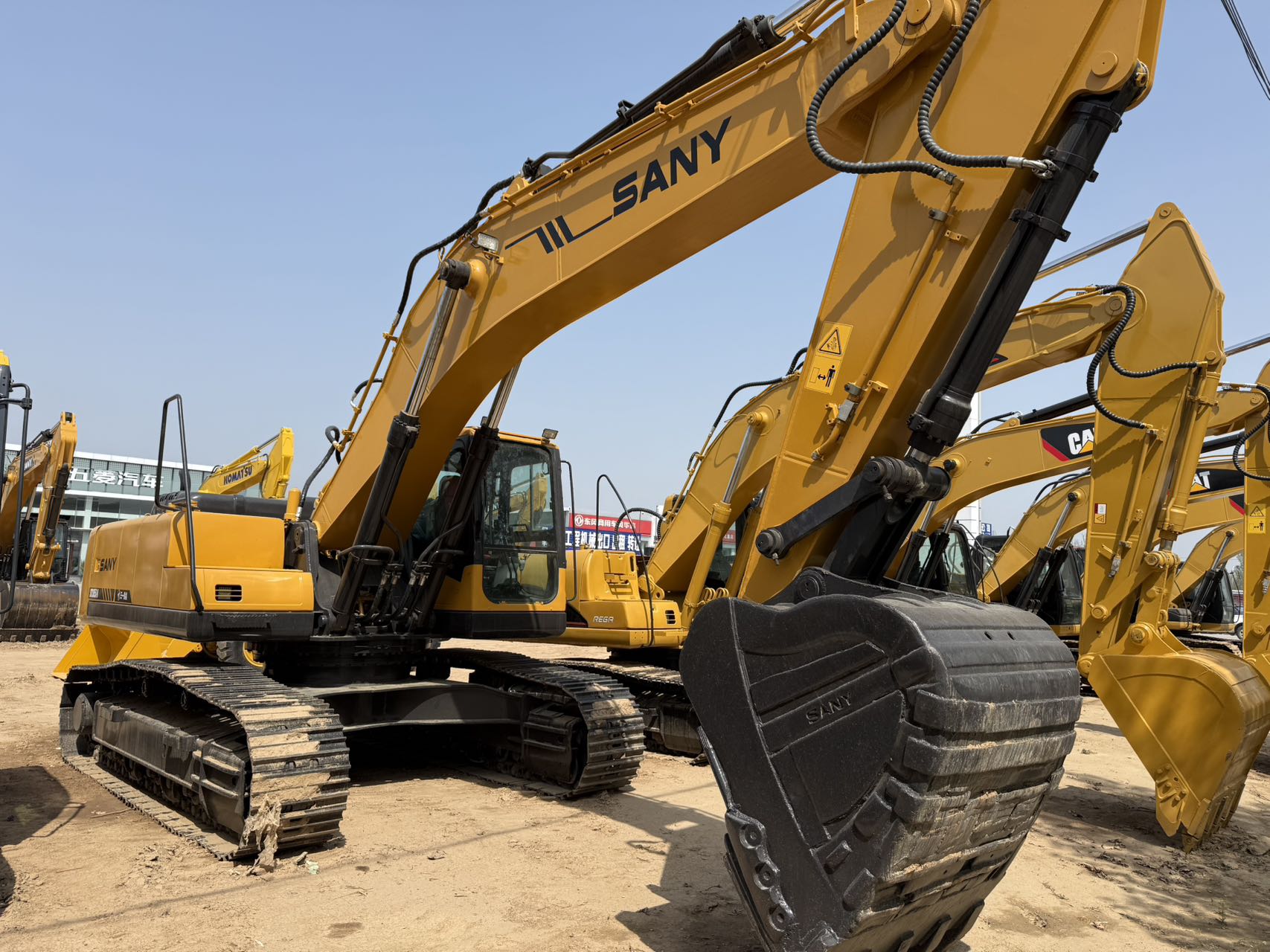

Used SANY SY305H Hydraulic Excavator

Used Excavator

Product Detail

The used SANY SY305H is a durable 30.5‑ton medium‑heavy hydraulic crawler excavator, a highly‑trusted workhorse within the global second‑hand construction‑machinery market. Well‑suited for high‑intensity earthmoving, quarry operations, road construction and light mining tasks, this pre‑owned excavator delivers outstanding reliability and powerful performance for tough‑condition jobsites.

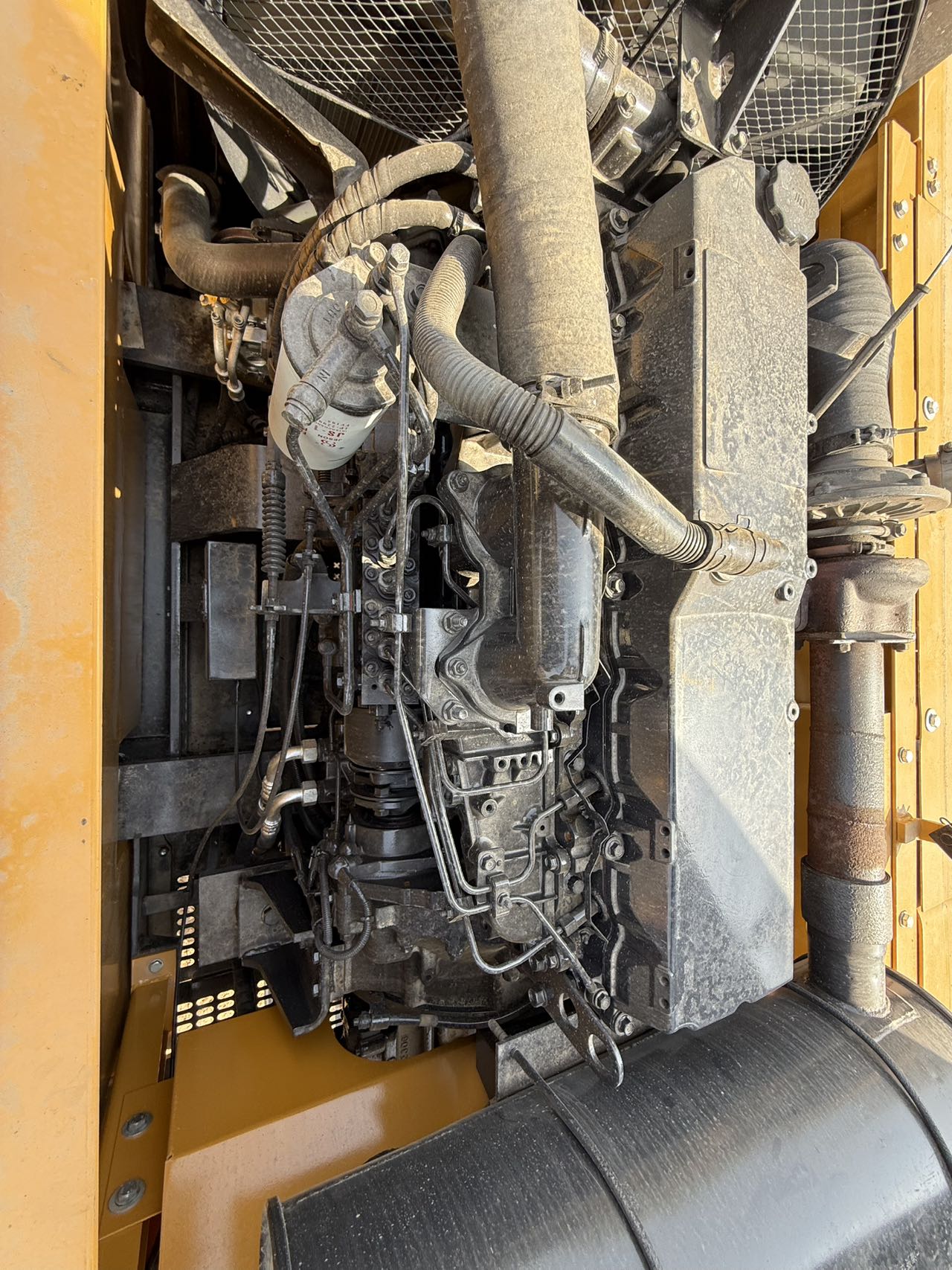

Powered by the proven, dependable Isuzu GH‑6HK1 diesel engine, the SANY SY305H is equipped with SANY self‑developed DOMCS intelligent control system. This well‑matched powertrain provides strong digging capacity, fast working‑cycle speed and remarkable fuel‑saving efficiency, effectively cutting long‑term operating costs.

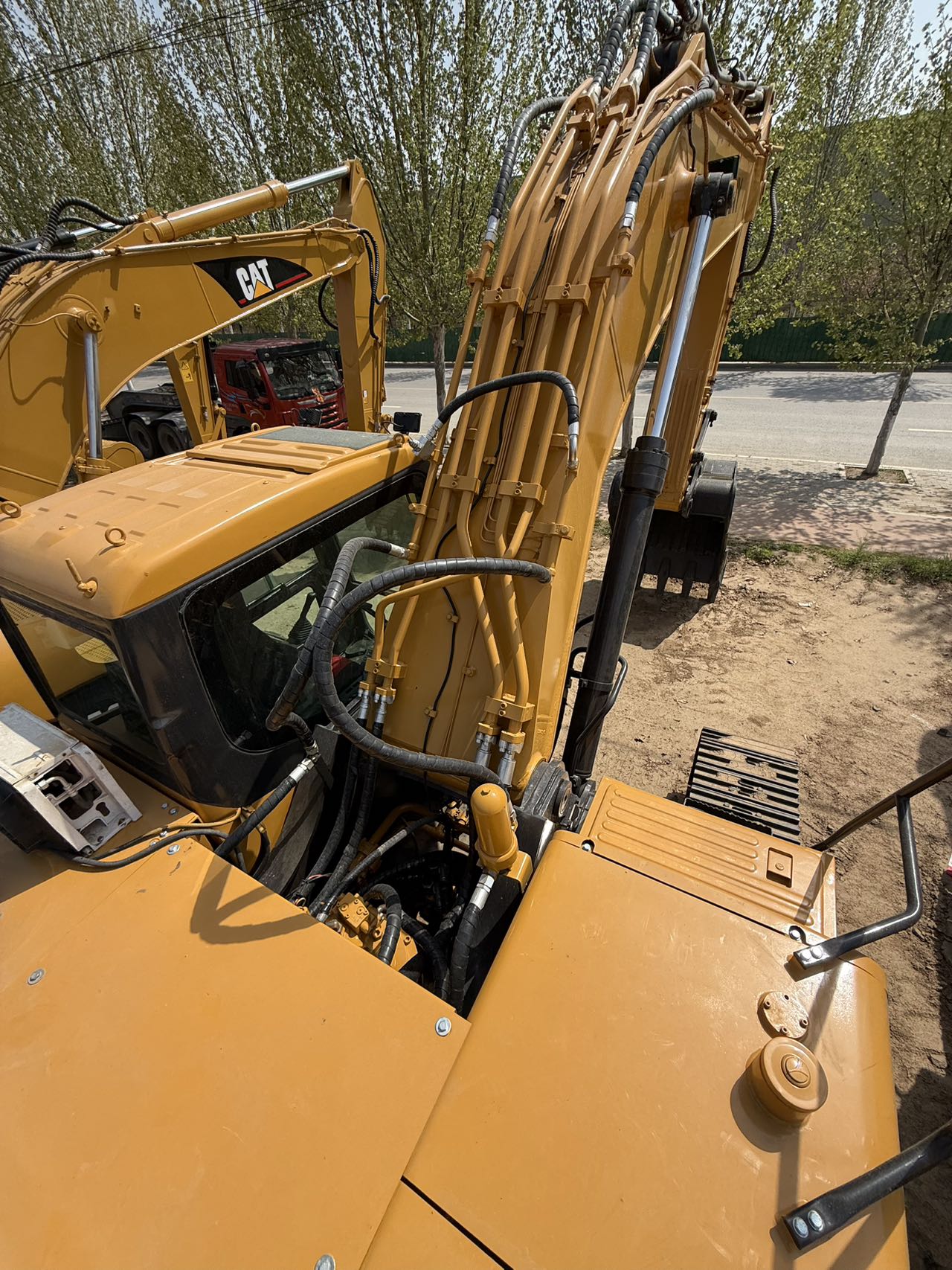

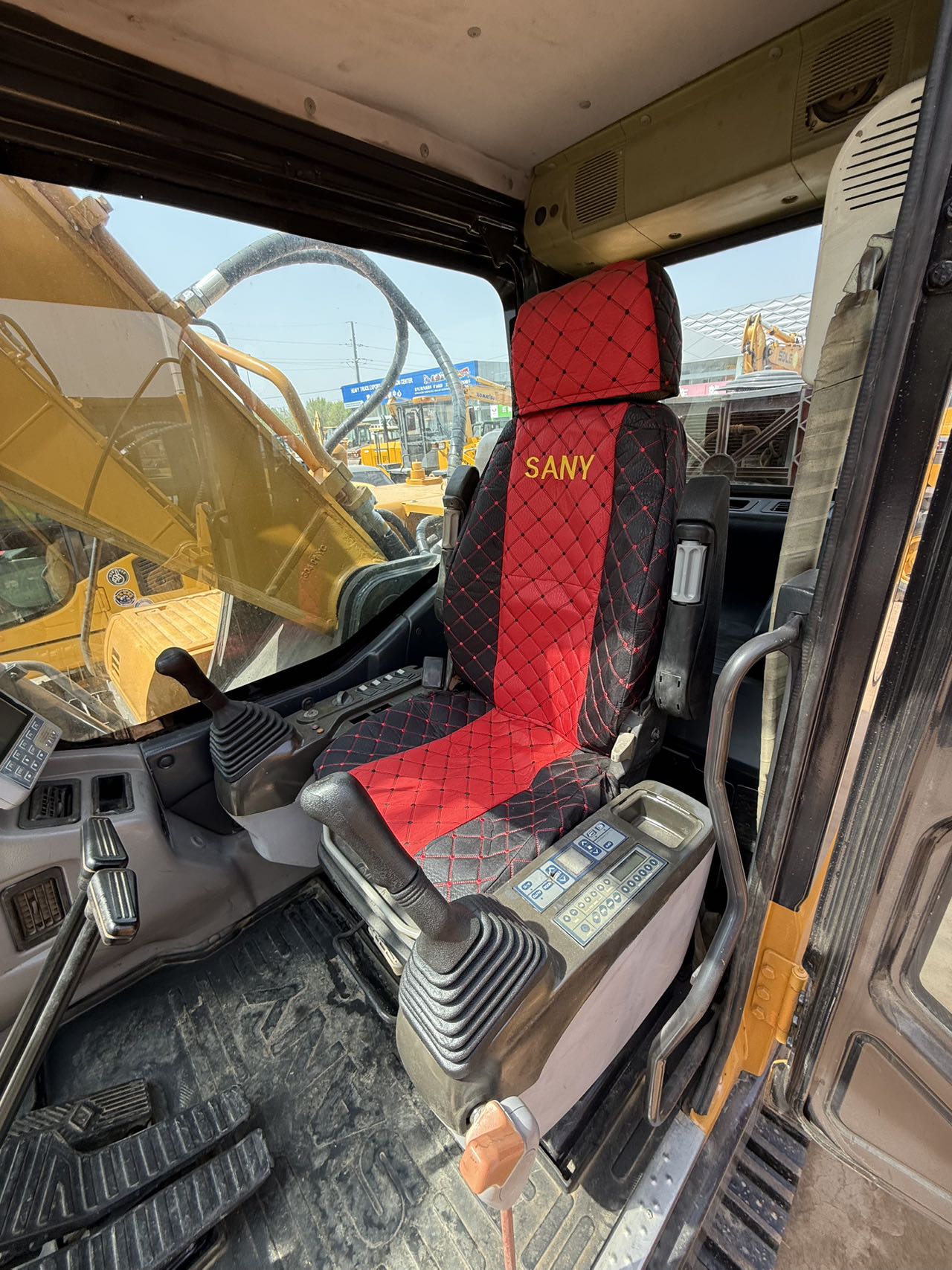

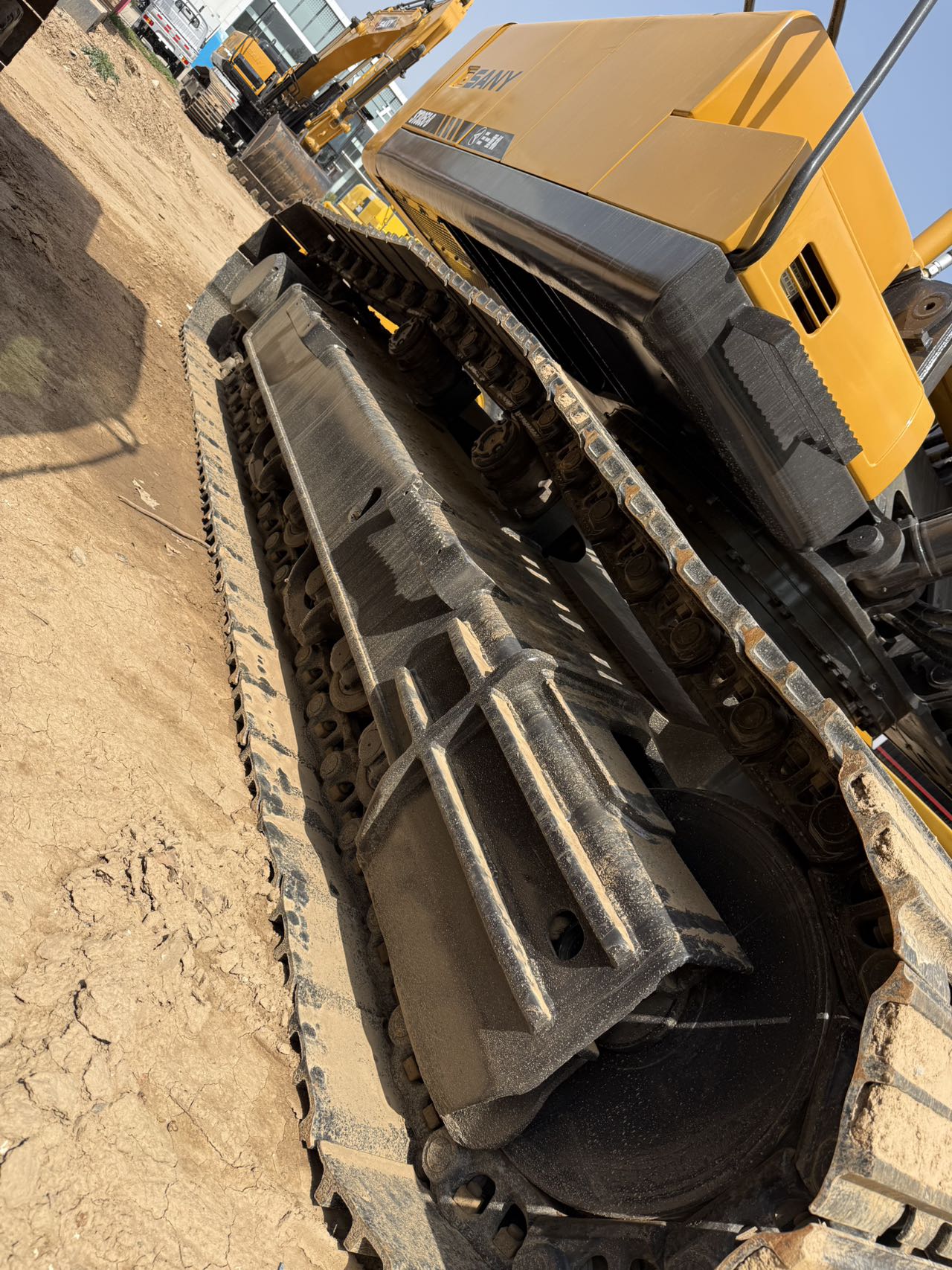

Built with reinforced boom‑and‑arm working attachments plus a heavy‑duty long‑undercarriage, the machine delivers excellent structural rigidity and stable performance during continuous heavy‑load operation. The human‑friendly, spacious operator cabin creates a low‑noise, comfortable working environment for long‑shift operation.

Boasting mature technology, low failure rates and globally‑accessible spare‑parts supply, the second‑hand SANY SY305H stands out as a highly cost‑effective heavy‑duty excavator of Chinese origin. It remains a top‑choice equipment solution for overseas contractors, rental fleets and mining operators across Africa, Southeast Asia, the Middle East and Latin America.

Specifications

Full Technical Specifications

I. Basic Machine Parameters

• Operating weight: 31,500 kg (31.5 tons) • Standard bucket capacity: 1.65 m³ (1.65–1.8 m³ optional) • Standard equipment: Boom 6,150 mm, Stick 3,200 mm • Track gauge: 2,590 mm • Overall track length: 4,840 mm • Standard track shoe width: 600 mm

II. Engine

• Model: Isuzu GH-6HK1, Inline 6-cylinder, water-cooled • Rated power: 212 kW @ 2,000 rpm • Maximum torque: 1,080 N·m @ 1,500 rpm • Displacement: 7.79 L • Emission standard: China Stage III / Tier 3 • Fuel tank capacity: 540 L

III. Travel & Swing Performance

• Swing speed: 9.5 rpm • Travel speed: Low speed 3.4 km/h, High speed 5.2 km/h • Gradeability: 70% (35°) • Ground pressure: 62 kPa

IV. Digging Forces (Standard Configuration)

• Bucket digging force: 220 kN • Stick digging force: 170 kN

V. Hydraulic System

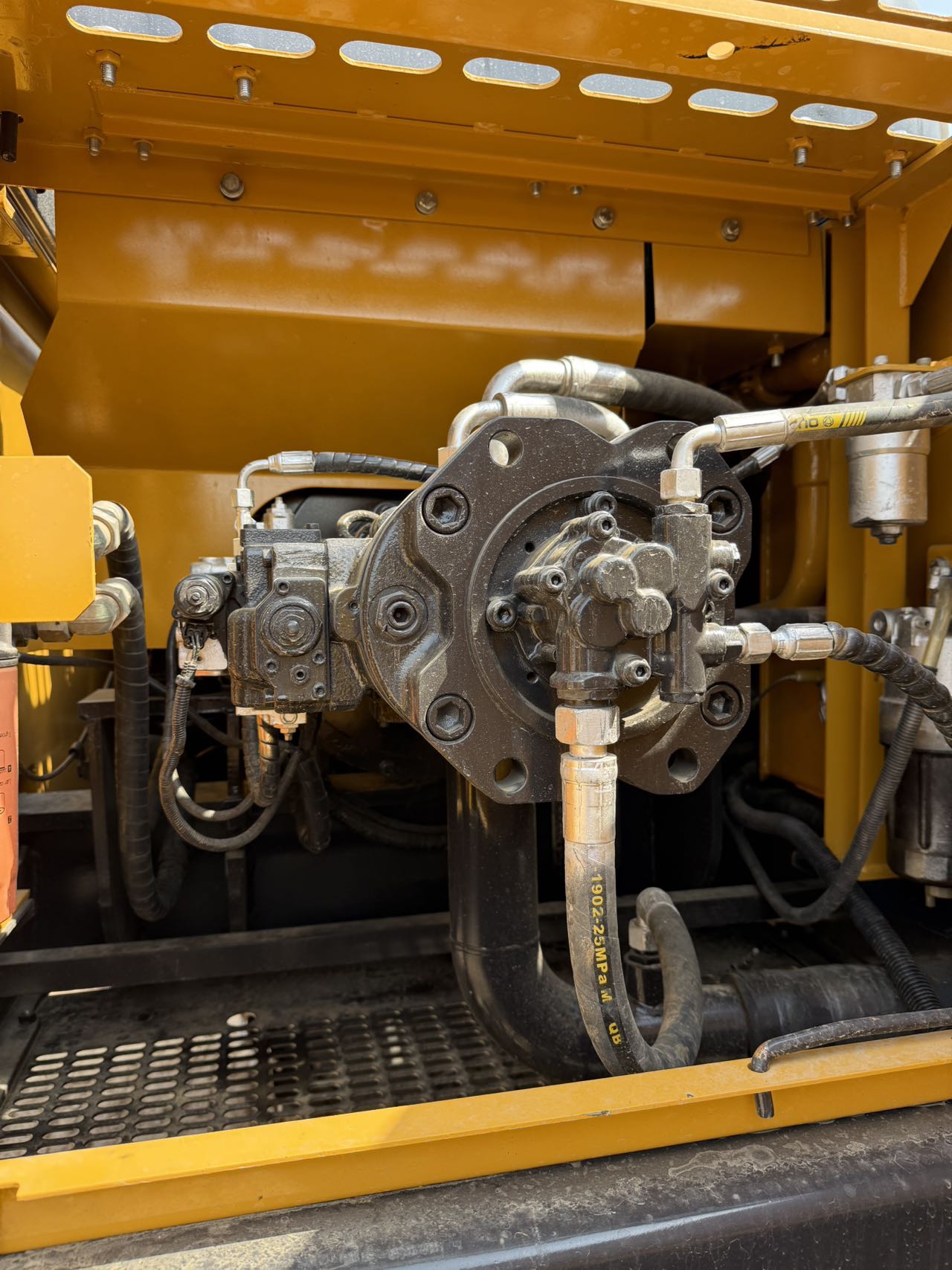

• Dual variable displacement main pumps • Hydraulic tank capacity: 380 L

VI. Service Refill Capacities

• Engine oil: 8 L • Cooling system: 35 L • Swing reduction gear: 11 L • Final drive (each side): 6.3 L

VII. Standard Working Ranges (Backhoe)

• Maximum digging height: 10,100 mm • Maximum dumping height: 7,025 mm • Maximum digging depth: 7,410 mm • Maximum horizontal reach: 11,100 mm
