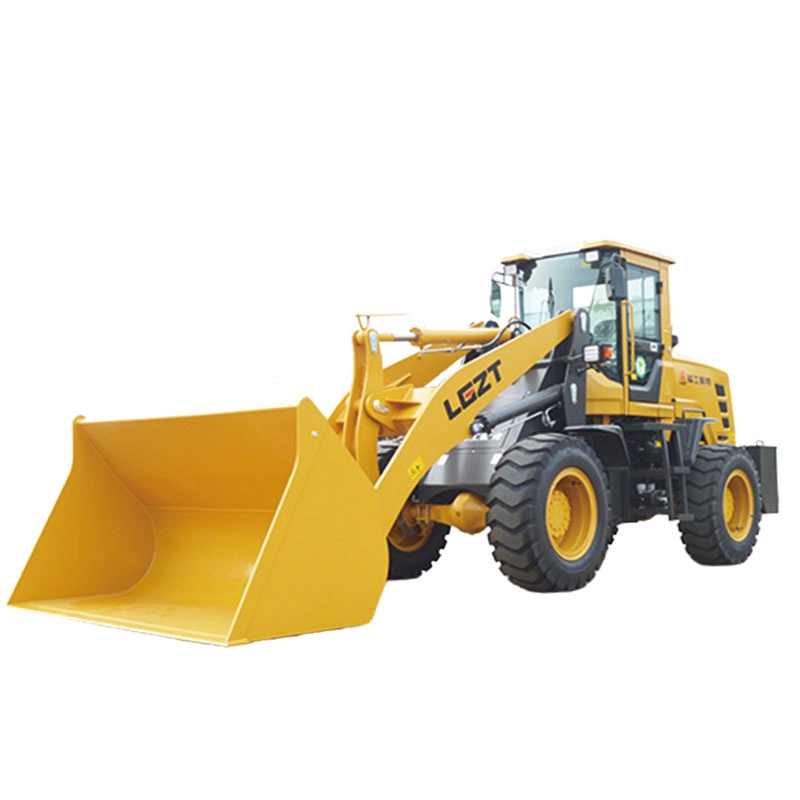

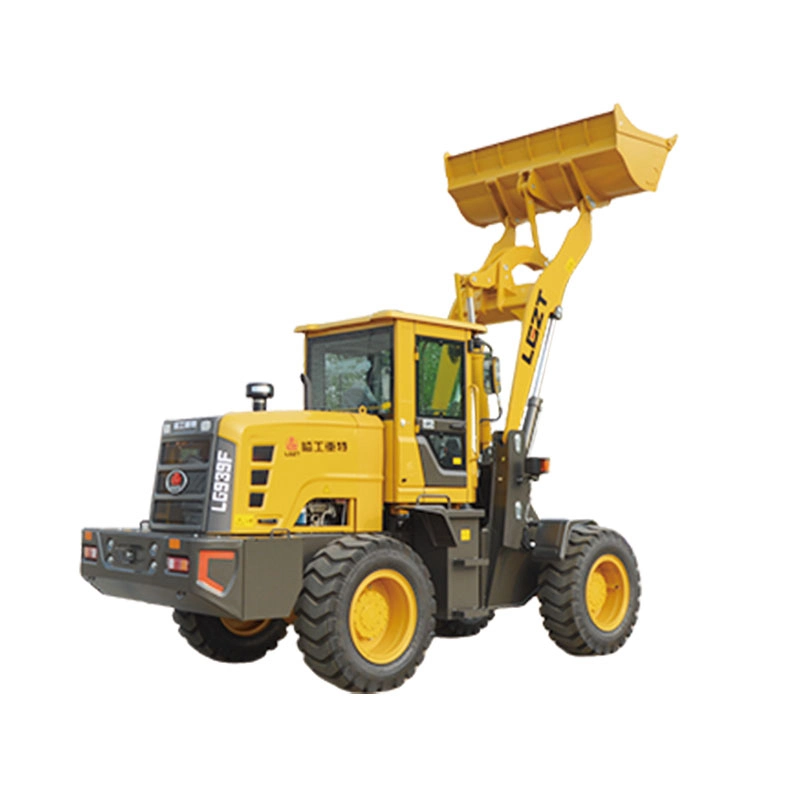

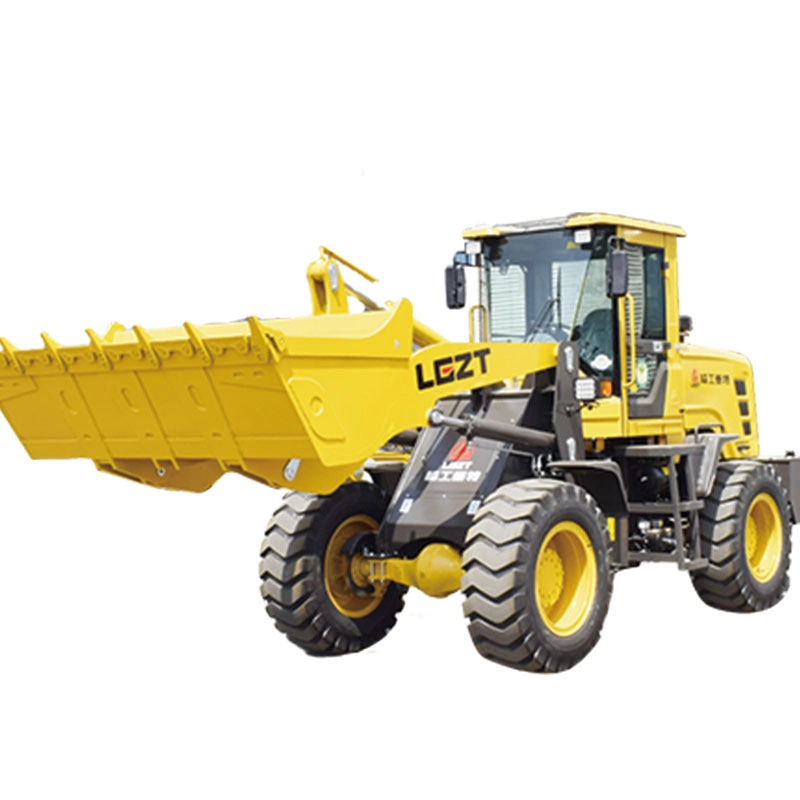

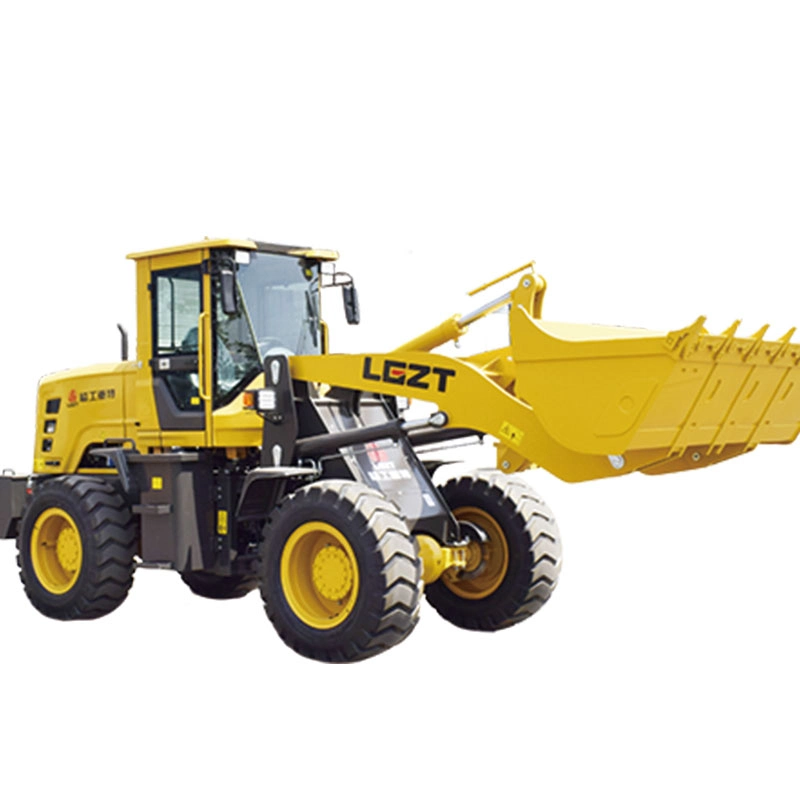

Used LG939F Wheel Loader

Used Wheel Loader

Product Detail

This well‑maintained used LG939F wheel loader is a versatile second‑hand front‑end loader widely used for earth‑moving, material stacking, sand and gravel handling, farmland renovation, municipal construction and road‑repair projects. Boasting a rated load of 2000 kg and a standard 1.1 m³ general‑purpose bucket, this second‑hand LG939F loader delivers powerful shovelling capacity with a maximum breakout force of ≥60 kN. It reaches a maximum lifting height of 5400 mm, dump height from 3600‑3800 mm and dump reach of 600‑800 mm. The boom lifting time is no more than 6.0 seconds, supporting fast‑cycle loading operations and improving site‑working efficiency.

The used LG939F front loader has an operating weight of 6000 kg. Its overall dimension measures 6750 mm × 2235 mm × 2970 mm. Equipped with a 2500 mm wheel‑base, 1690 mm track width, 400 mm minimum ground clearance and 5200 mm minimum turning radius, together with durable 16/70‑24 tires, the machine features great off‑road performance and flexible manoeuvrability on narrow or rough construction sites.

Power is supplied by a reliable YN38CBF4 turbocharged diesel engine that meets China Stage IV / Tier 3 emission standards. It provides rated power of 85 kW (114 HP) at 2200 rpm and peak torque up to 420 N·m, ensuring stable power output and good fuel economy for long‑hour heavy‑duty tasks. This used wheel loader adopts torque‑converter fixed‑shaft power‑shift transmission with 2 forward and 2 reverse gears, heavy‑duty hub‑reduction drive axles and a top travel speed of 30 km/h. Full‑hydraulic articulated steering brings easy, precise control during operation and relocation.

Its hydraulic system runs at a working pressure of 17 MPa. The 100‑litre fuel tank and 53‑litre hydraulic‑oil tank guarantee sufficient fluid capacity for all‑day continuous jobs. Fully original and regularly serviced, this second‑hand LG939F wheel loader has a low failure rate and excellent cost‑performance. It is a cost‑effective used construction machinery option for global buyers seeking dependable multi‑purpose loaders.

Specifications

Working Performance

Rated Load: 2000 kg Standard Bucket Capacity: 1.1 m³ Maximum Breakout Force: ≥60 kN Maximum Lifting Height: 5400 mm Maximum Dump Height: 3600–3800 mm Dump Reach: 600–800 mm Boom Lifting Time: ≤6.0 s

Overall Dimension & Weight

Operating Weight: 6000 kg Overall Dimension (Length × Width × Height): 6750 mm × 2235 mm × 2970 mm Wheel Base: 2500 mm Track Width: 1690 mm Minimum Ground Clearance: 400 mm Minimum Turning Radius: 5200 mm Tire Specification: 16/70‑24

Engine System

Engine Model: YN38CBF4 Turbocharged Diesel Engine Emission Standard: China Stage IV / Tier 3 Rated Power: 85 kW (114 HP) / 2200 rpm Maximum Torque: 420 N·m

Transmission & Driving System

Transmission Type: Torque converter fixed‑shaft power shift Gear Shift: 2 Forward Gears / 2 Reverse Gears Drive Axle: Heavy‑duty hub reduction drive axle Maximum Travel Speed: 30 km/h Steering Mode: Full hydraulic articulated steering

Hydraulic & Oil Tank Capacity

Hydraulic System Working Pressure: 17 MPa Fuel Tank Capacity: 100 L Hydraulic Oil Tank Capacity: 53 L
