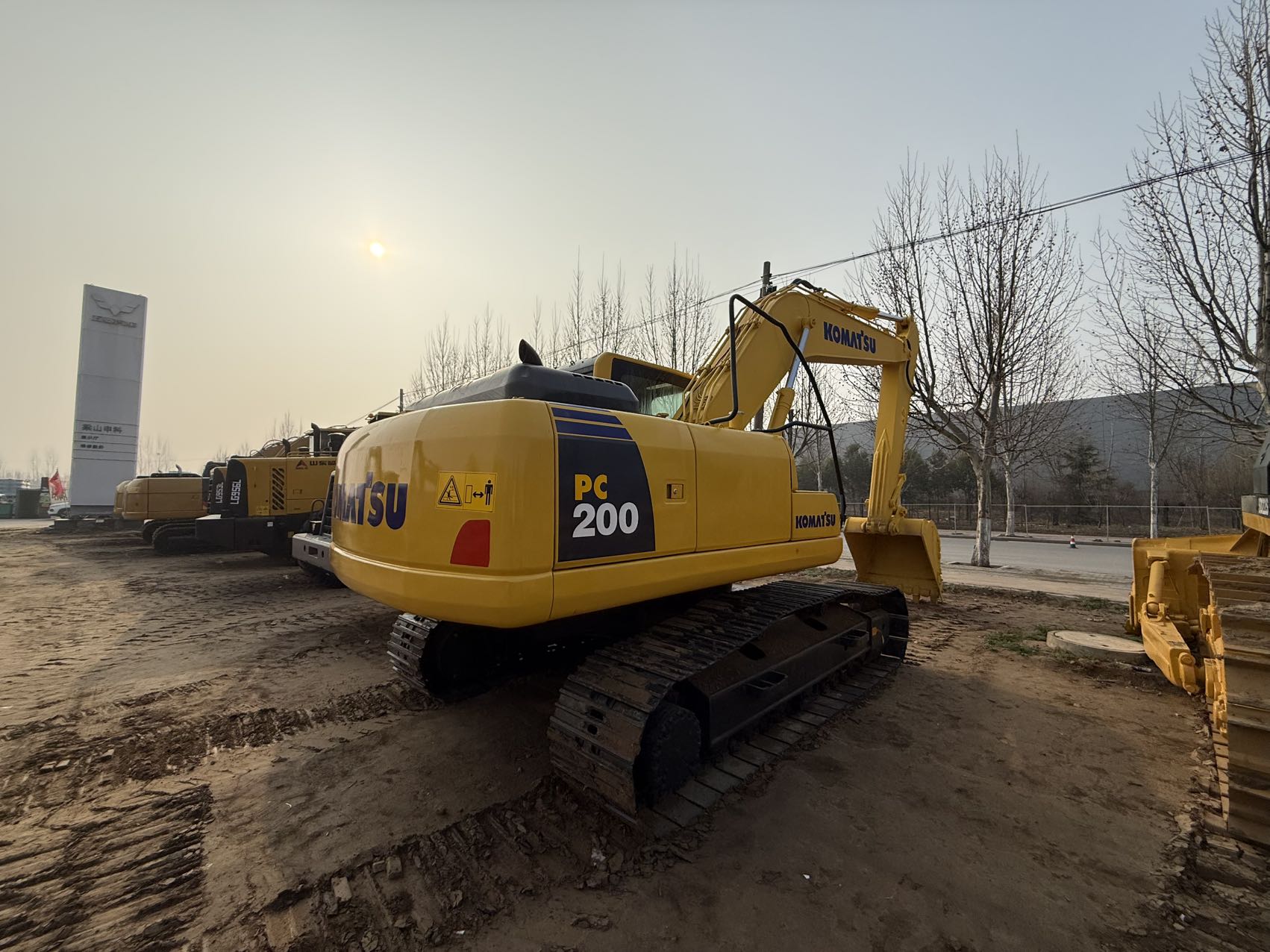

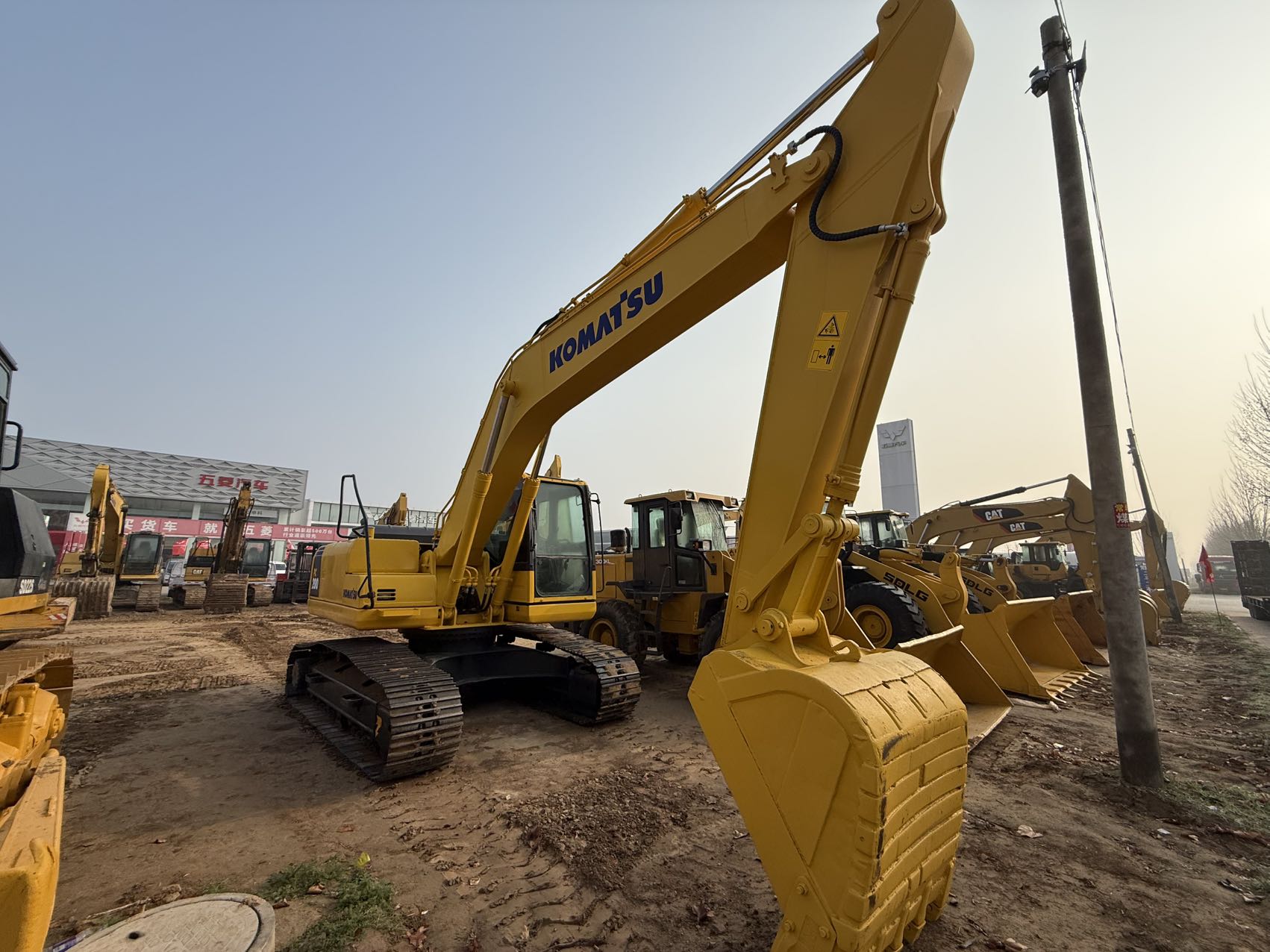

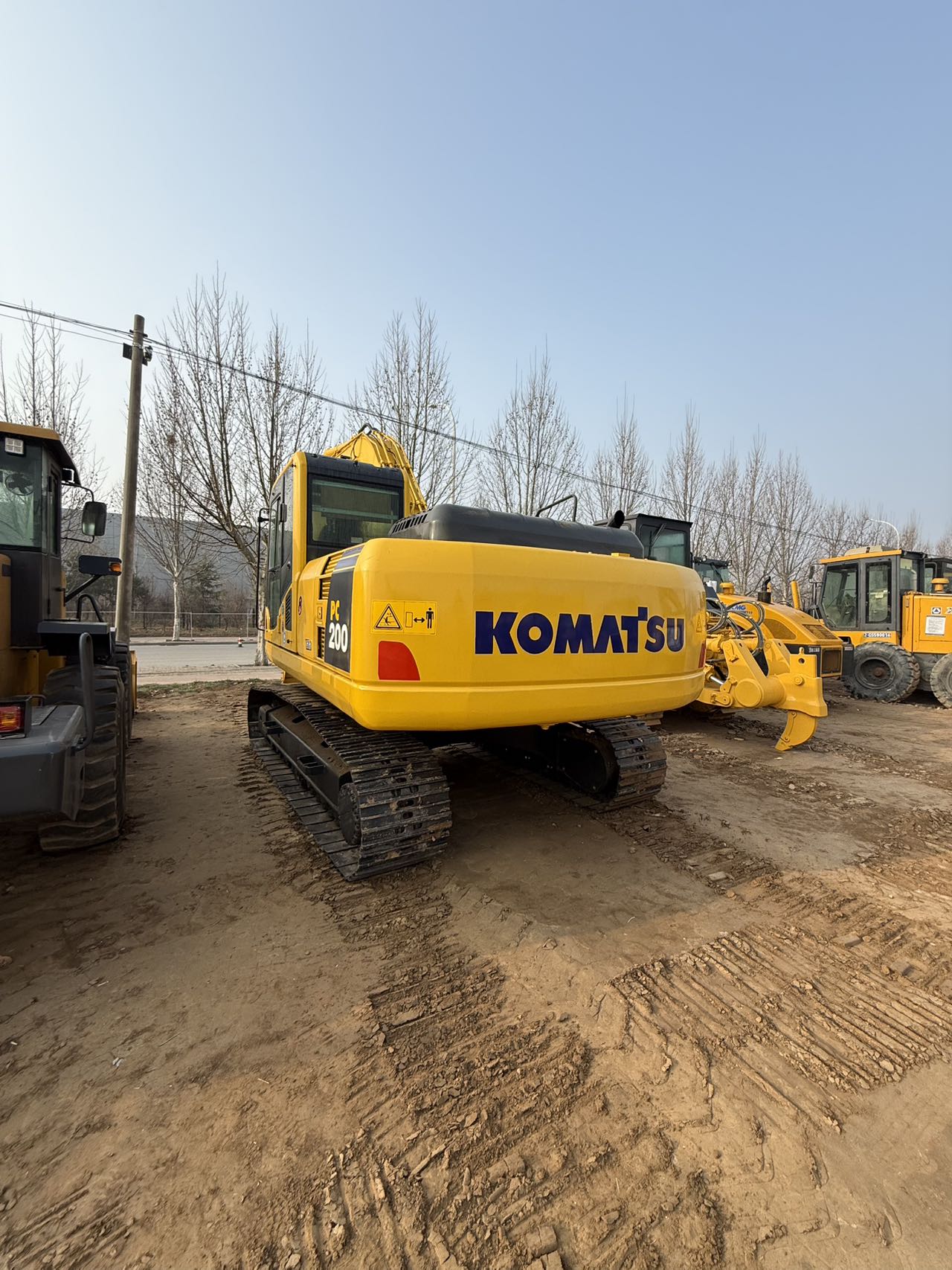

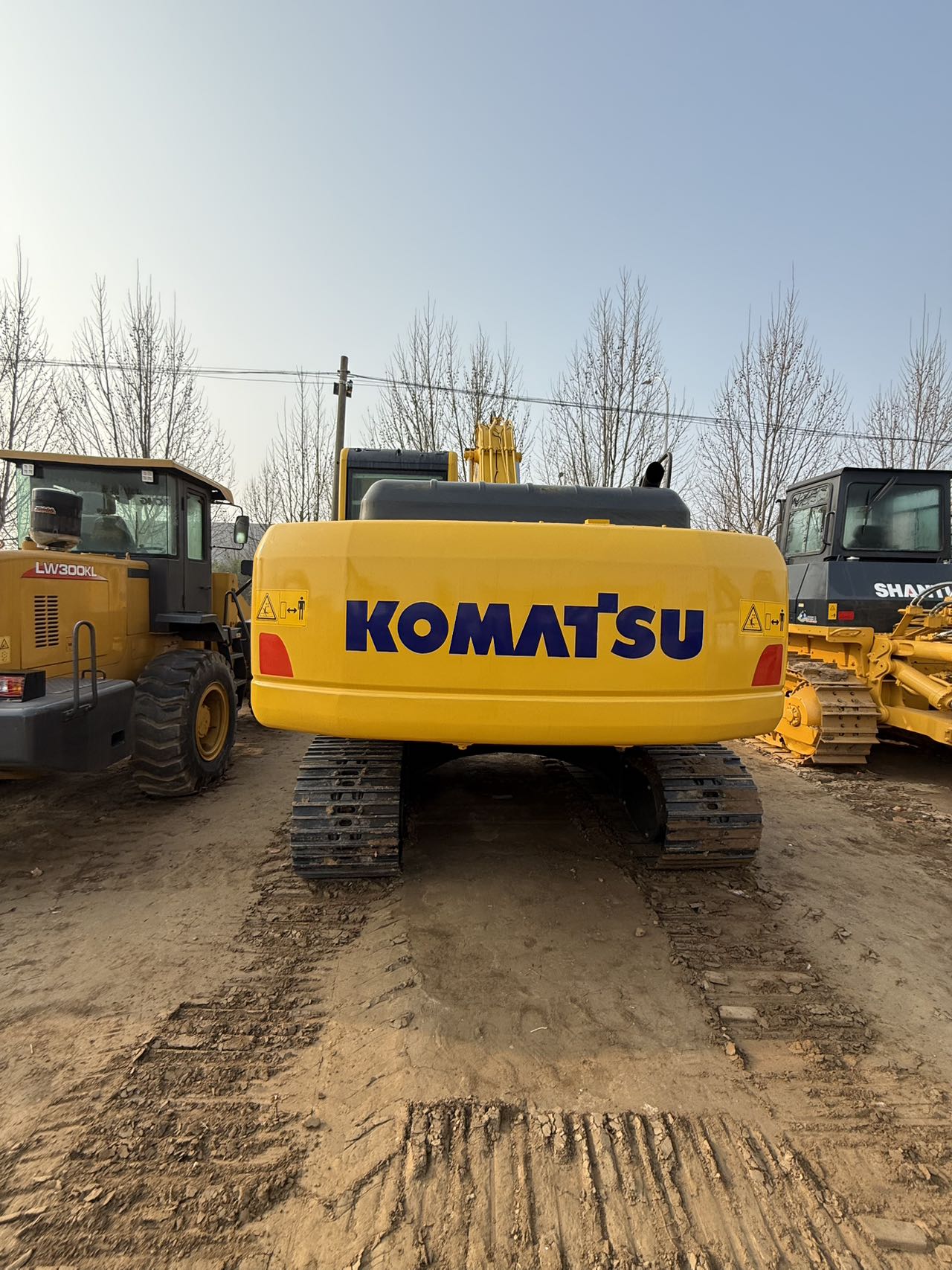

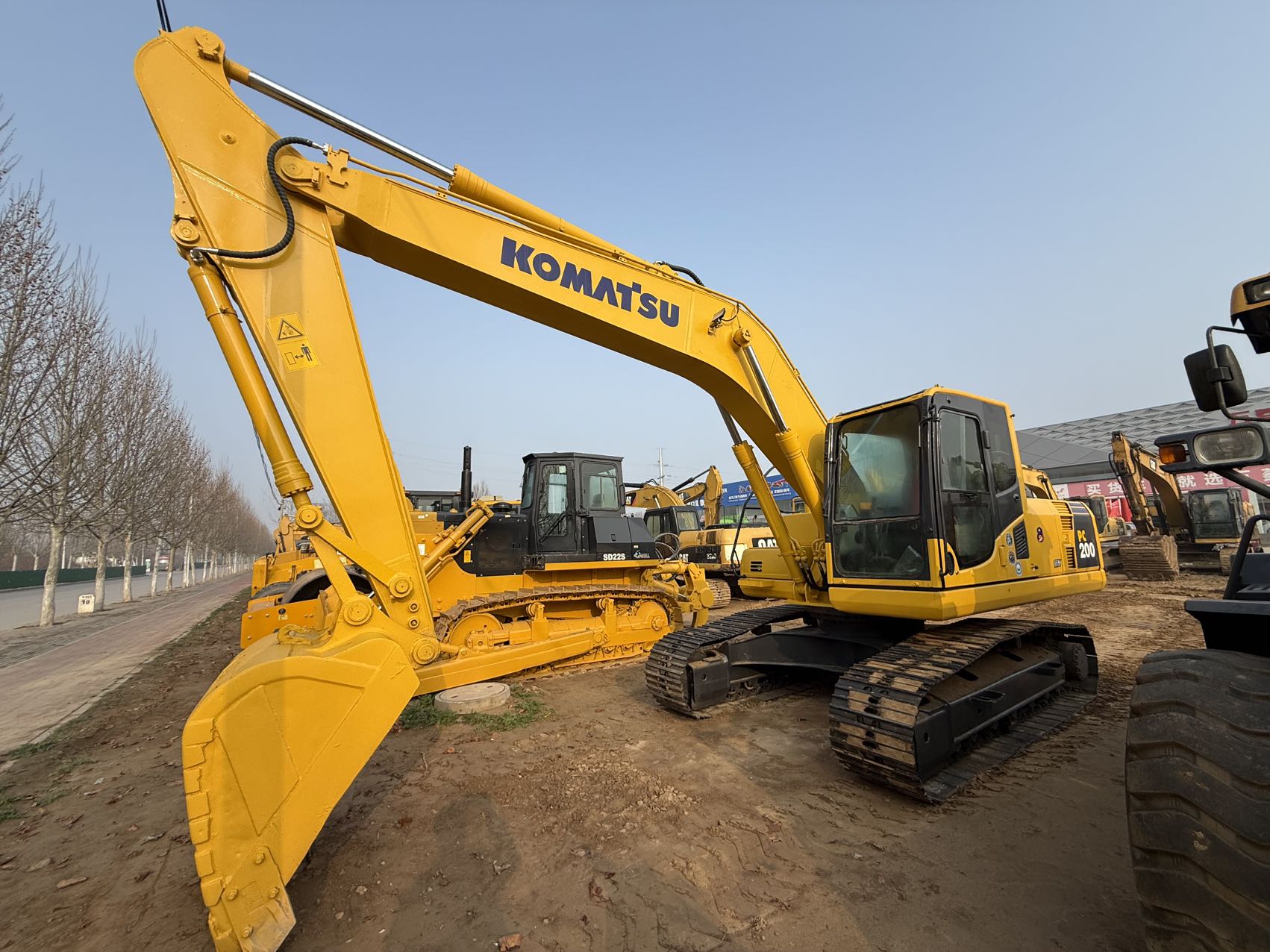

Used Komatsu PC200-8 Hydraulic Crawler Excavator
Used Komatsu PC200-8 Hydraulic Crawler Excavator
Used Excavator
Product Detail
Used Caterpillar 320C is a legendary‑class 21‑ton medium hydraulic crawler excavator highly sought‑after in the global second‑hand machinery market. Powered by the durable Cat 3066T direct‑injection diesel engine, it delivers stable, long‑lasting power output with excellent fuel‑economy performance. Fitted with original Caterpillar high‑performance hydraulic system, this used excavator generates strong breakout force, responsive movement and ultra‑smooth operation on all kinds of earth‑moving jobs. Built‑on heavy‑duty reinforced mainframe and robust long‑undercarriage deliver outstanding structural durability and working stability on rough, uneven construction sites. Its spacious operator cabin offers low‑noise, comfortable working environment, while the service‑friendly layout greatly cuts daily maintenance time and repair costs. Widely applicable for earthworks, municipal construction, road building, trenching, foundation digging and site‑clearance projects, the Cat 320C remains one of the most reliable, cost‑effective and spare‑part‑friendly medium‑size used excavators preferred by overseas contractors and rental companies worldwide.
Specifications
I. Machine Specifications
• Operating Weight: 19,900 kg (19.9 tons) • Standard Bucket Capacity: 1 m³ • Boom / Arm Length: 5,700 mm / 2,925 mm • Transport Dimensions (L × W × H): 9,480 × 2,800 × 3,040 mm

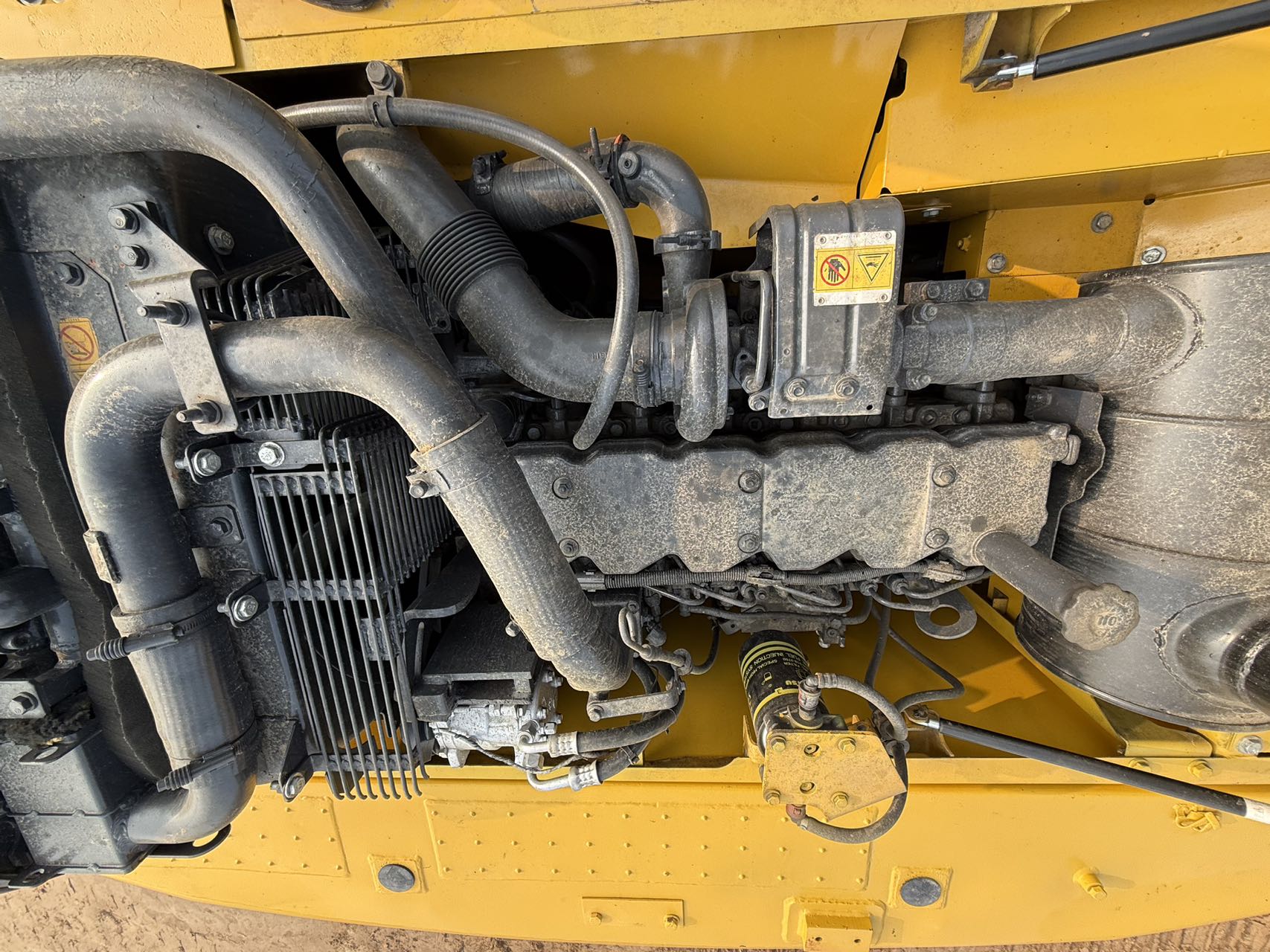

II. Engine
• Model: SAA6D107E-1 (Inline 6-cylinder, water-cooled, turbocharged) • Rated Power: 110 kW / 2000 rpm (approx. 150 hp) • Displacement: 6.69 L • Fuel Tank Capacity: 400 L
III. Working Performance
• Bucket Digging Force: 149 kN • Arm Digging Force: 108 kN • Swing Speed: 12.4 rpm • Travel Speed (3-speed): 3.0 / 4.1 / 5.5 km/h • Gradeability: 70% (35°) • Ground Pressure: 44.1 kPa
IV. Working Range
• Maximum Digging Reach: 9,875 mm • Maximum Digging Depth: 6,620 mm • Maximum Digging Height: 10,000 mm • Maximum Dumping Height: 7,110 mm

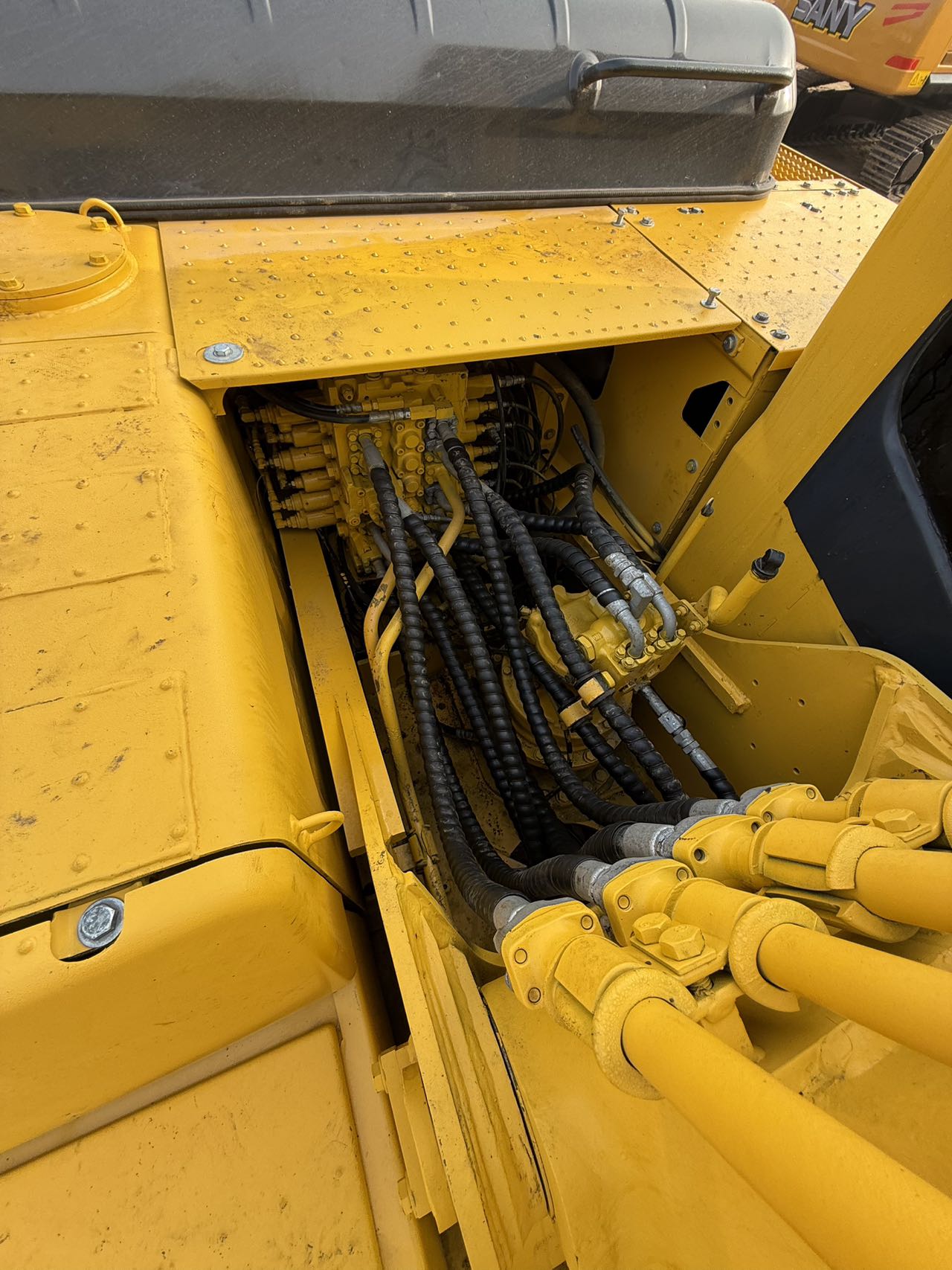

V. Hydraulic System
• Main Pump: Variable displacement piston pump, Max. Flow 439 L/min • System Pressure: Working Circuit 37.3 MPa, Swing Circuit 28.9 MPa • Hydraulic Oil Tank Capacity: 135 L

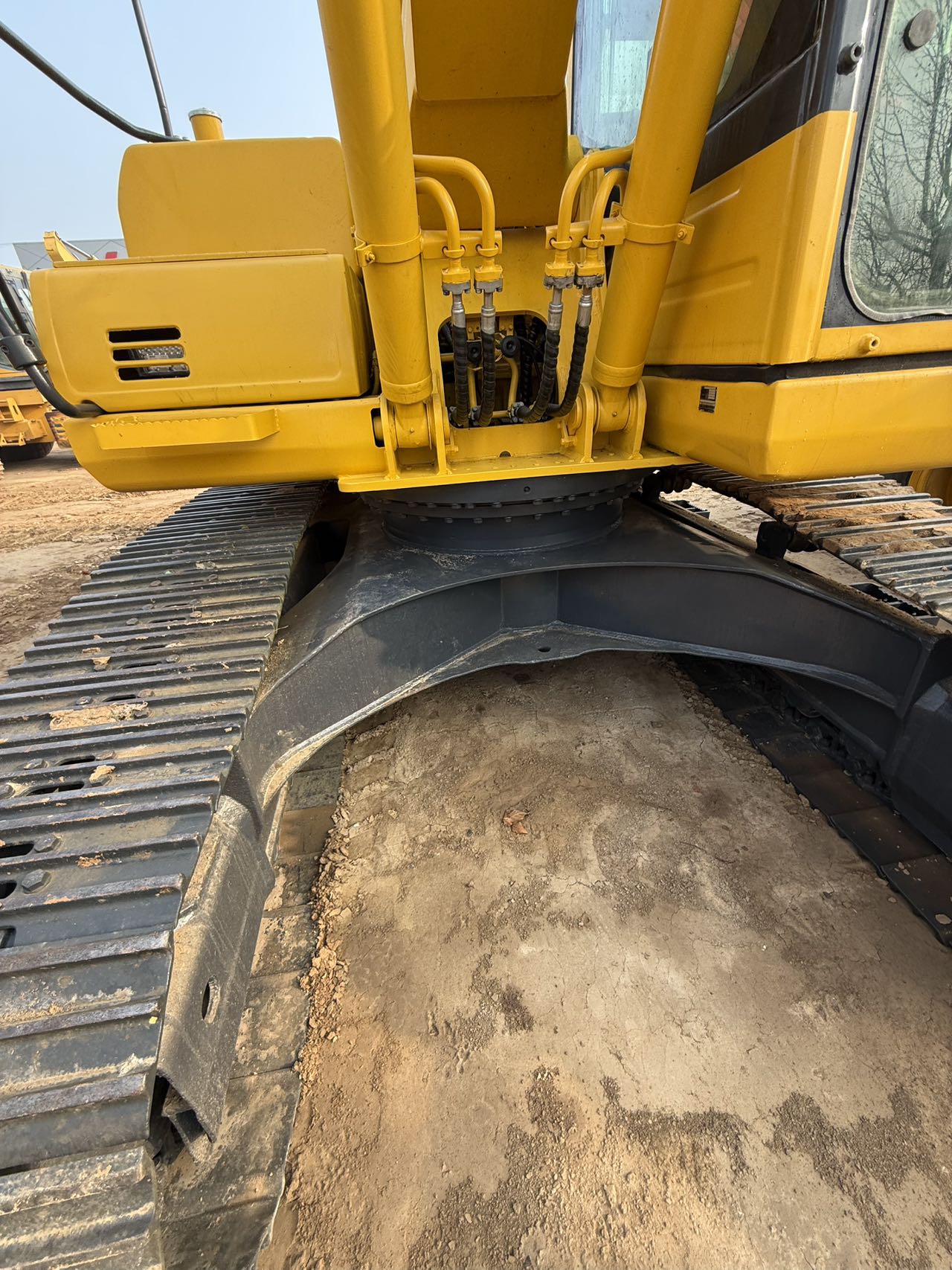

VI. Undercarriage Dimensions
• Track Shoe Width: 600 mm • Track Gauge: 2,200 mm • Minimum Ground Clearance: 440 mm • Rear Swing Radius: 2,710 mm
