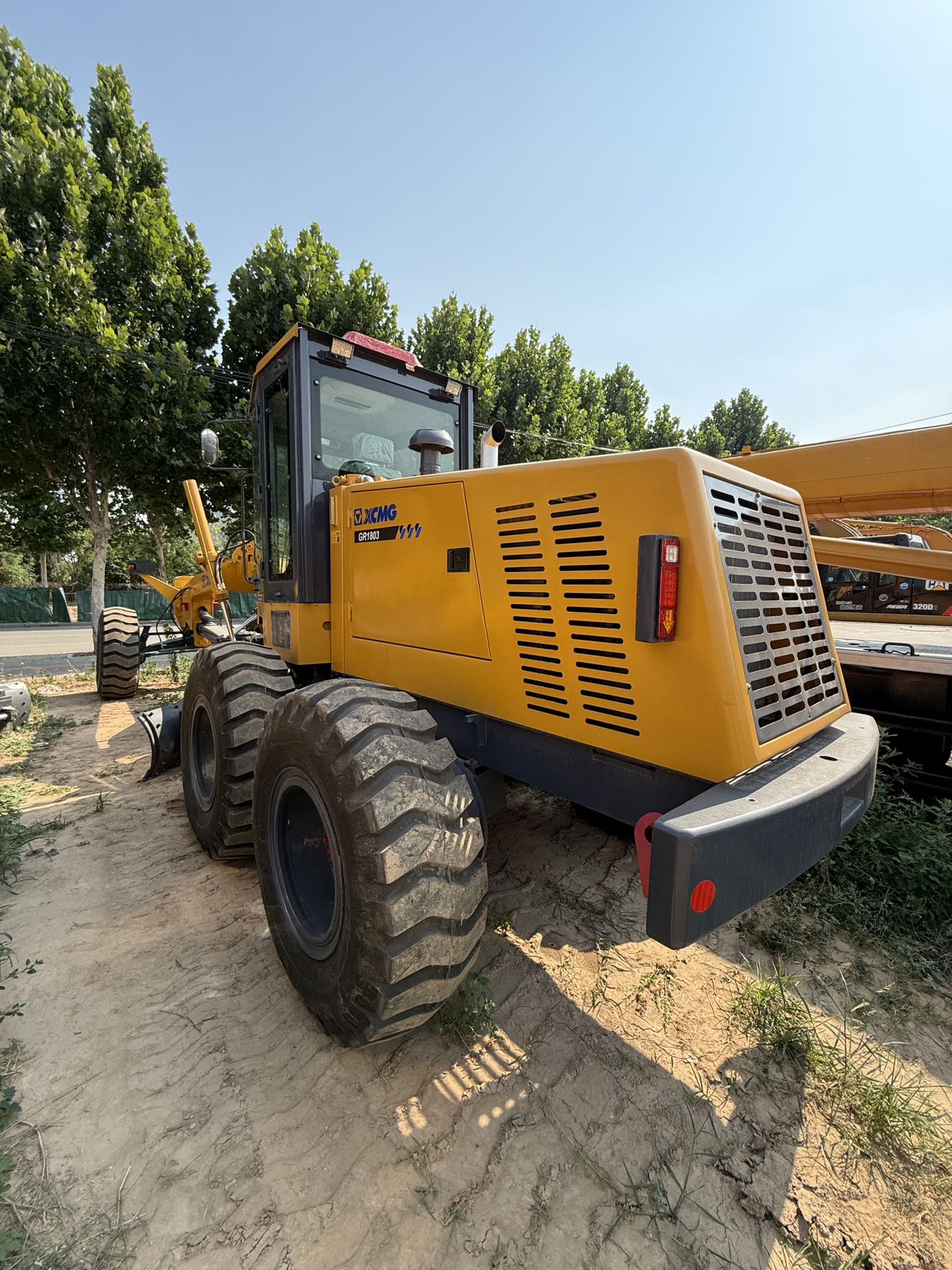

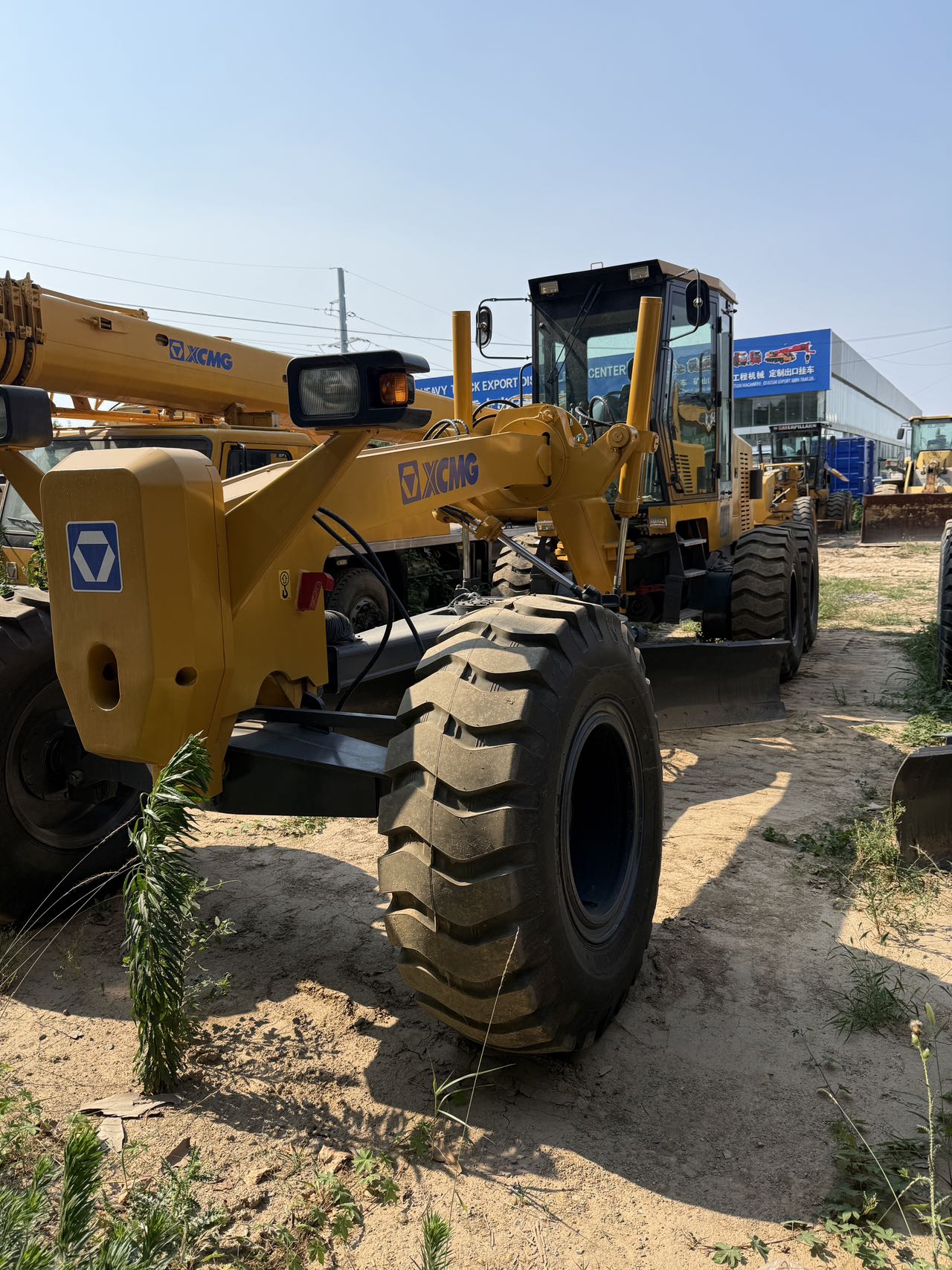

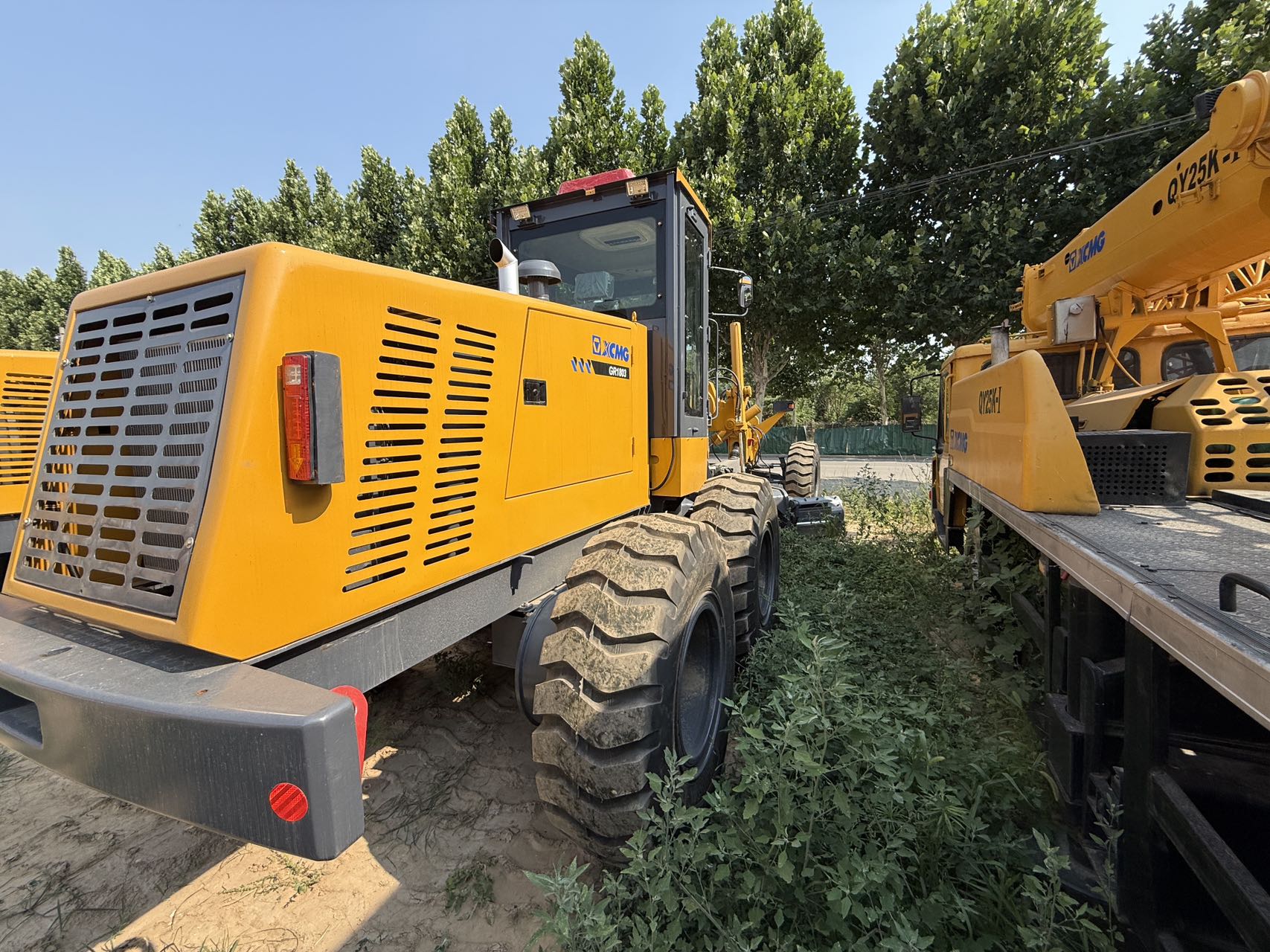

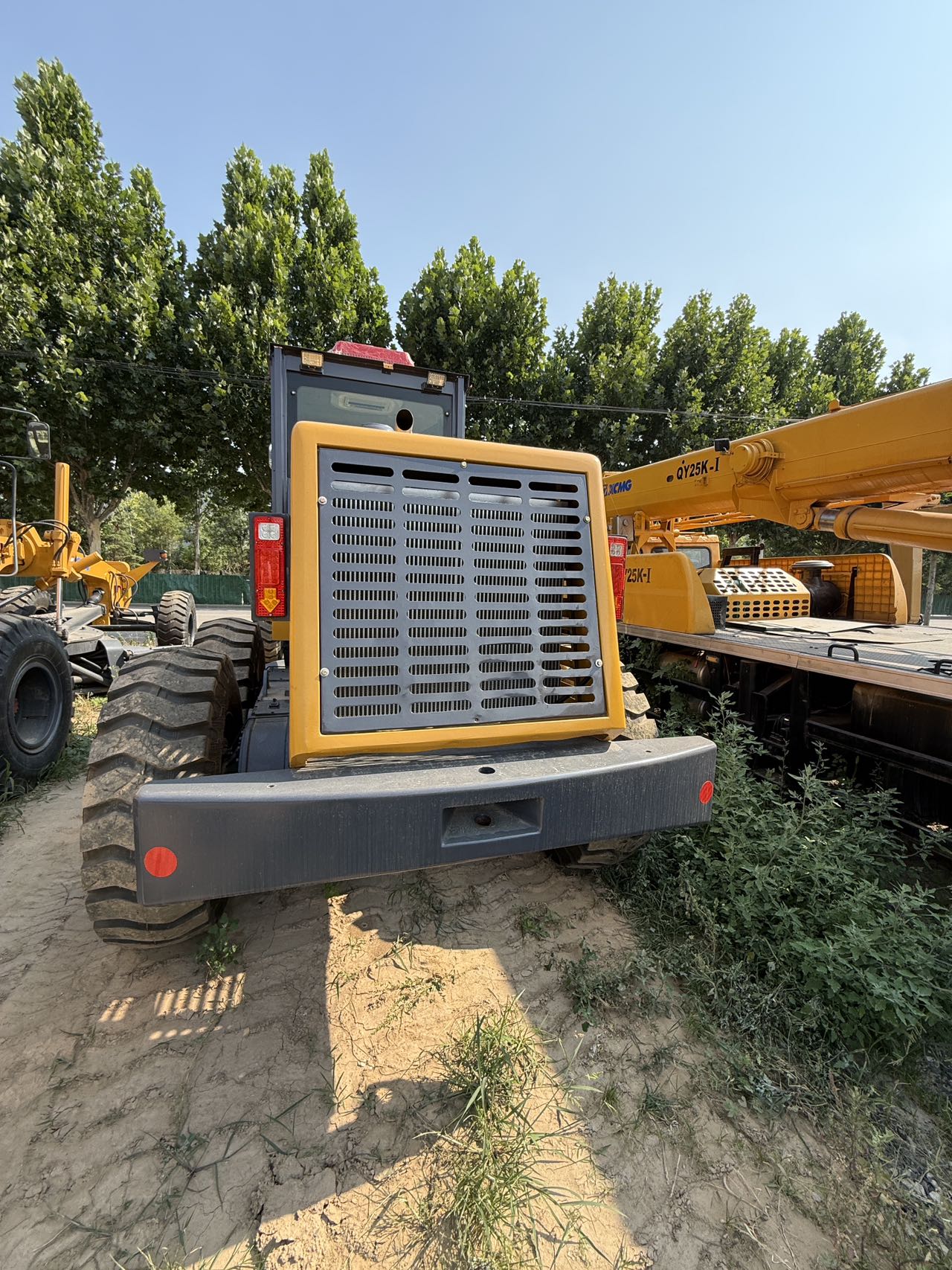

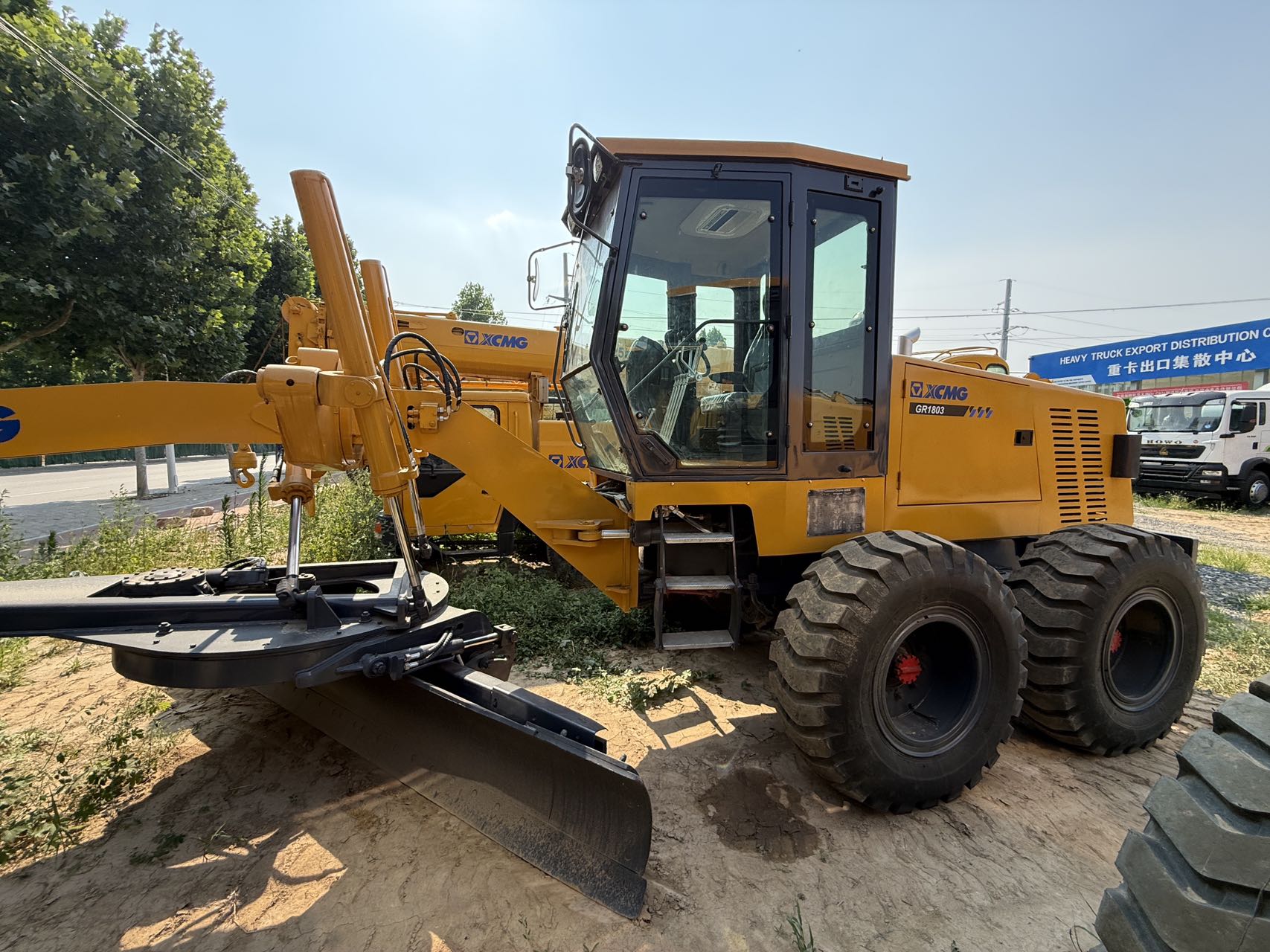

Used XCMG GR1803 Motor Grader

Used Motor Grader

Product Detail

The used XCMG GR1803 is a well‑received 180‑hp medium‑duty motor grader, a high‑precision road‑building machine widely traded on the global second‑hand construction‑machinery market. This pre‑owned grader delivers reliable leveling performance for highway construction, municipal road projects, farmland renovation and other earth‑shaping jobsites.

Powered by a proven Shangchai turbocharged diesel engine with rated power of 140 kW, the second‑hand GR1803 generates abundant low‑speed torque and excellent fuel‑saving efficiency for long‑hour continuous operation. Equipped with durable power‑shift transmission and load‑sensing hydraulic system, its heavy‑duty moldboard supports flexible lifting, side‑shift adjustment, tilting and full‑rotation movement, ensuring highly‑accurate grading results.

Built‑in reinforced main frame and heavy‑duty circle assembly greatly enhance structural rigidity and extend the machine’s service lifespan. It is fully compatible with optional attachments including a front dozer blade and rear scarifier, expanding its working versatility.

Featuring mature mechanical layout, convenient‑access maintenance points and globally‑available spare‑part resources, this used XCMG grader remains a cost‑effective workhorse for overseas contractors. It is extensively applied for road profiling, ditching, slope trimming, land levelling and snow‑clearing tasks across highway, municipal and farm‑improvement projects in Africa, Southeast Asia, the Middle East and Latin America.

Specifications

I. Basic Machine Parameters

  1. Operating Weight: 15,400 kg
  2. Overall Dimensions (L × W × H): 8,900 × 2,625 × 3,420 mm
  3. Tire Specification: 17.5-25
  4. Front Axle Ground Clearance: 430 mm
  5. Track Width: 2,156 mm; Wheelbase: 6,219 mm; Mid-rear Wheel Track: 1,538 mm
  6. Minimum Turning Radius: 7.3 m
  7. Maximum Gradeability: ≥25%
  8. Traction Force (Adhesion Coefficient 0.75): ≥79 kN

II. Engine Parameters

• Stage II Emission Version: SC7H190.1G3 • Rated Power: 140 kW / 2000 rpm (190 hp)

III. Transmission & Travel Speeds

Forward 6 speeds (km/h): 5, 8, 11, 19, 23, 38

Reverse 3 speeds (km/h): 5, 11, 23

IV. Main Moldboard Parameters

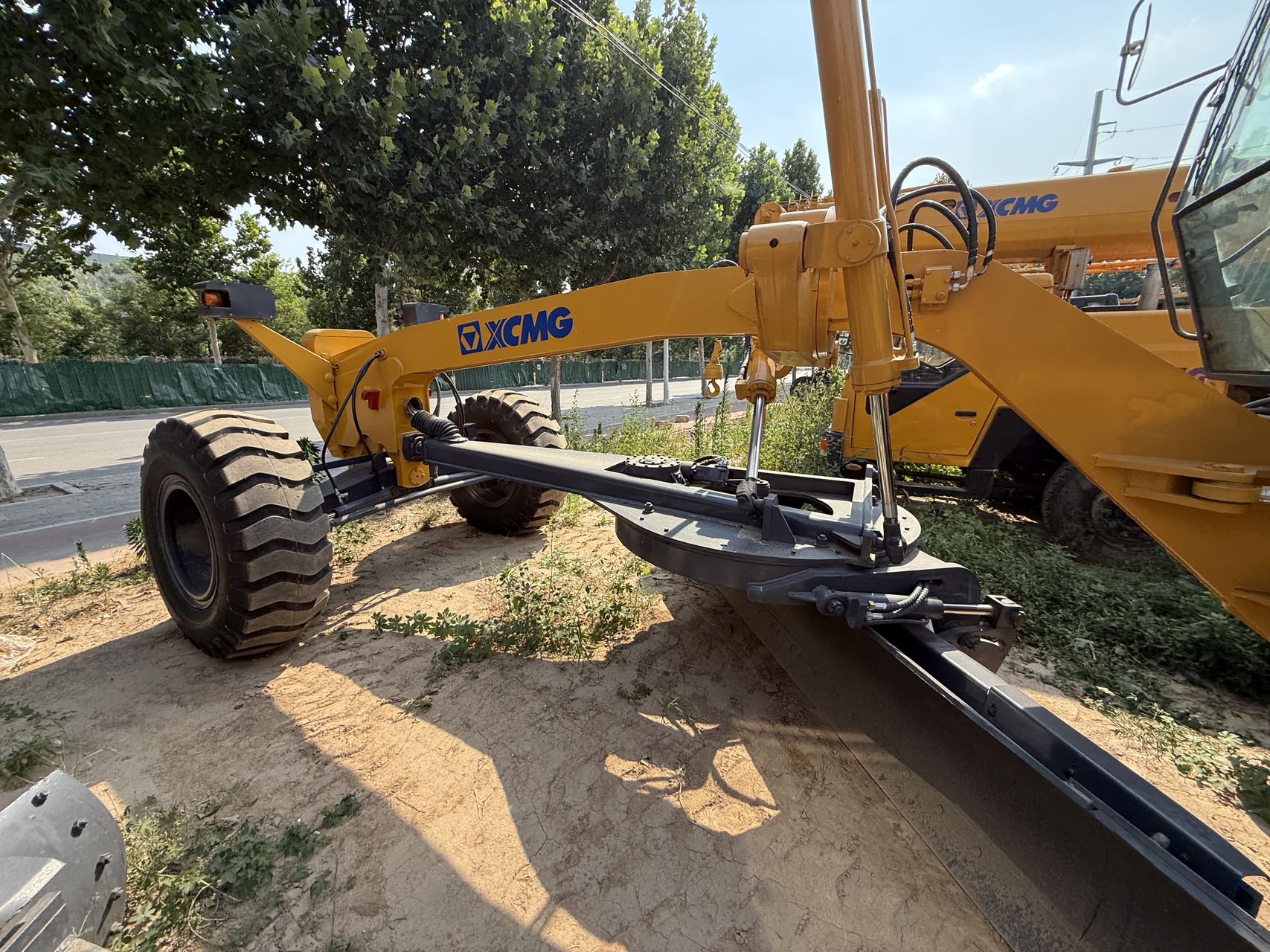

• Moldboard Size (Length × Height): 3,965 × 610 mm • Maximum Lifting Height: 400 mm • Maximum Cutting Depth: 500 mm • Moldboard Left & Right Rotation Angle: ±27° • Maximum Front Axle Oscillation Angle: ±15°

V. Hydraulic System

• System Working Pressure: 26 MPa
