Used Komatsu PC360-7 Excavator
Used Komatsu PC360-7 Excavator
Used Excavator
Product Detail
The Used Komatsu 360-7 Excavator is a heavy-duty 33-ton class hydraulic excavator widely recognized for its powerful digging performance, stable hydraulic system, reliable Komatsu original engine, and excellent durability. This second-hand Komatsu 360-7 digger is perfectly suited for large-scale earthmoving, foundation excavation, road construction, mining auxiliary work, and material loading projects, serving as a high-cost-performance construction machine for global contractors and engineering companies.
Adopting a robust and heavy-duty body structure, the Komatsu 360-7 excavator delivers superior working stability and load-bearing capacity. The machine operating weight reaches 33,000 kg (33 tons), providing solid grounding performance for heavy-duty digging tasks. It comes with a 1.6 m³ standard bucket, with optional bucket capacities ranging from 1.4 m³ to 2.1 m³ to adapt to different working conditions such as soil excavation, rock handling, and bulk material loading. Equipped with a 6,470 mm long boom and 3,185 mm arm, the machine extends a large working coverage. The overall transport dimension is 11,140 × 3,190 × 3,280 mm, ensuring convenient transportation and flexible site deployment.
Powered by the original Komatsu SAA6D114E 6-cylinder inline turbocharged engine, the Used Komatsu 360-7 excavator provides strong and reliable power output with long-term stability. The engine delivers a rated power of 180 kW (245 hp) at 1900 rpm, with a displacement of 8.27 L and a bore-stroke size of 114 × 135 mm. The mature Komatsu engine technology features low fuel consumption, low failure rate, strong power reserve, and excellent adaptability for long-hour continuous operation, greatly reducing operational and maintenance costs for construction projects.
This second-hand Komatsu 360-7 excavator owns outstanding working performance and efficient operation capability. It features a bucket breakout force of 227 kN and an arm breakout force of 171 kN, ensuring powerful penetration and digging capacity for hard soil, gravel, and fractured rock layers. The swing speed reaches 9.5 rpm, enabling fast and smooth slewing movement and improving continuous operation efficiency. The machine supports three travel speed ranges of 3.2 km/h, 4.5 km/h and 5.5 km/h, adapting to different site moving requirements. With a 35° gradeability (70%) and 67.7 kPa ground contact pressure, the excavator performs excellently on slopes, muddy roads, and uneven construction sites with stable walking performance and strong terrain adaptability.
The Komatsu 360-7 excavator boasts a super-wide working range to meet various construction demands. It achieves a maximum digging reach of 11,100 mm, a maximum digging depth of 7,380 mm, a maximum digging height of 10,210 mm, and a maximum dumping height of 7,110 mm. The comprehensive working parameters enable the machine to finish deep excavation, high-level stacking, and long-distance material handling efficiently, covering most conventional and medium-large construction scenarios.
Equipped with a high-efficiency hydraulic system, the Used Komatsu 360-7 guarantees sensitive and coordinated working actions. The main pump flow rate reaches 535 L/min, providing sufficient hydraulic power for rapid digging, lifting and slewing operations. The machine is fitted with a 605 L large-capacity fuel tank and a 188 L hydraulic tank, supporting long-time continuous operation without frequent refueling and liquid replenishment, effectively improving overall construction efficiency and reducing downtime.
In conclusion, the Used Komatsu 360-7 Hydraulic Excavator is a classic 33-ton heavy-duty construction machine with original reliable quality, strong digging power, stable hydraulic performance and low failure rate. With excellent working condition and cost-effective price, it is an ideal second-hand excavator for infrastructure construction, earthwork projects, and mining auxiliary operations worldwide.
Specifications
1. Basic Specifications
- Operating weight: 33,000 kg (33 tons)
- Standard bucket capacity: 1.6 m³ (optional: 1.4–2.1 m³)
- Boom / Arm length: 6,470 mm / 3,185 mm
- Transport dimensions (L × W × H): 11,140 × 3,190 × 3,280 mm
2. Engine
- Model: Komatsu SAA6D114E (6-cylinder, inline, turbocharged)
- Rated power: 180 kW / 1900 rpm (245 hp)
- Displacement: 8.27 L; Bore × Stroke: 114 × 135 mm
3. Working Performance
- Bucket breakout force: 227 kN; Arm breakout force: 171 kN
- Swing speed: 9.5 rpm
- Travel speed: 3.2 / 4.5 / 5.5 km/h (3 speed ranges)
- Gradeability: 35° (70%); Ground contact pressure: 67.7 kPa
4. Working Range (Standard Equipment)
- Maximum digging reach: 11,100 mm
- Maximum digging depth: 7,380 mm
- Maximum digging height: 10,210 mm
- Maximum dumping height: 7,110 mm
5. Hydraulic System & Tank Capacities
- Main pump flow rate: 535 L/min
- Fuel tank capacity: 605 L; Hydraulic tank capacity: 188 L
RELATED PRODUCTS
Used Hyundai R305LC‑9T Hydraulic Crawler Excavator
High‑quality second‑hand Hyundai R305LC‑9T crawler excavator, a popular 30‑ton h...
click here Read more
Used Cat 336D Hydraulic Excavator
The used Caterpillar 336D is a well‑known 33.75‑ton heavy‑duty hydraulic crawler...
click here Read more
Used SDLG LG956F wheel loader
The used SDLG L956F is a popular long-wheelbase 5-ton front wheel loader, widely...
click here Read more

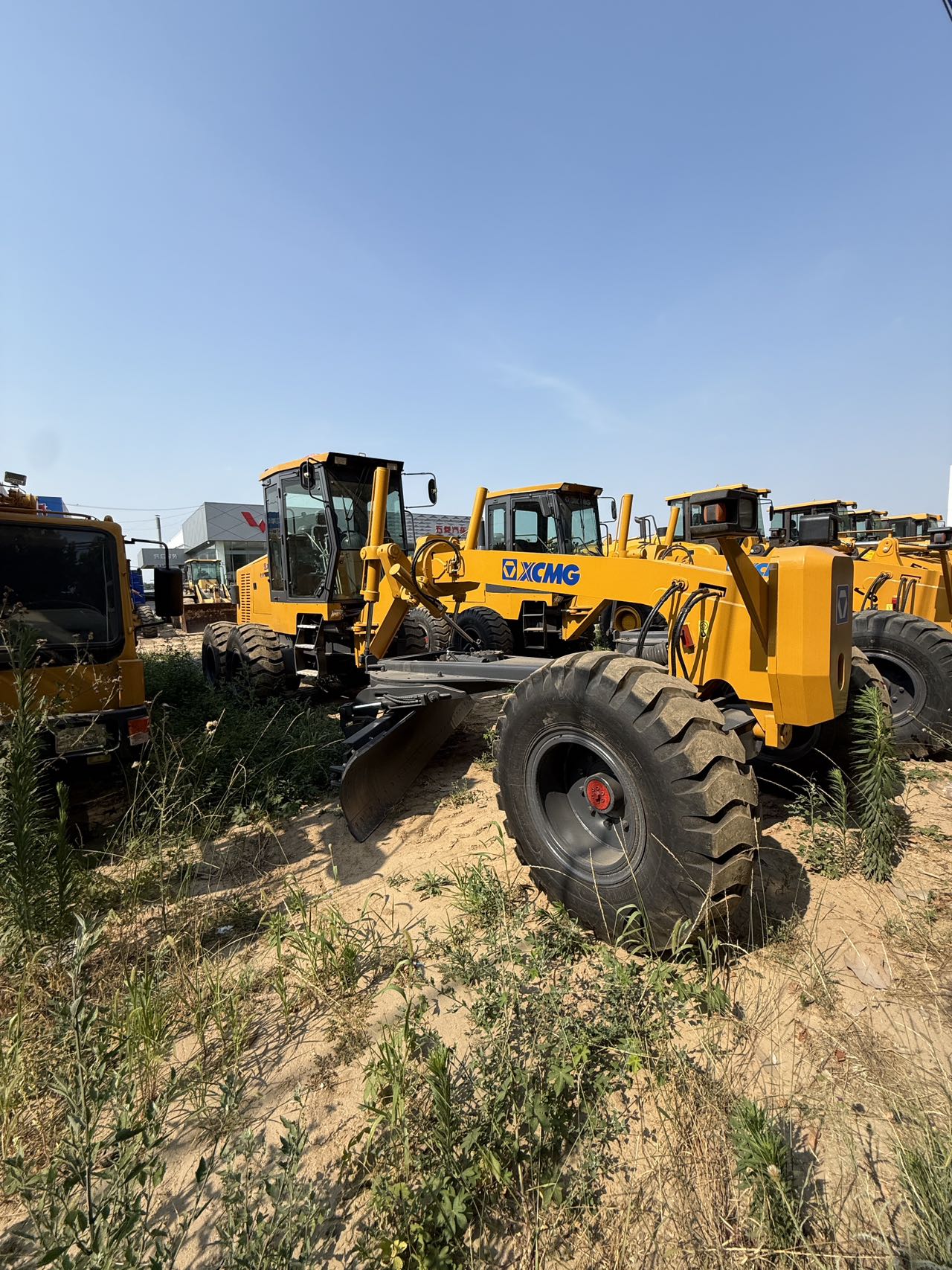

Used XCMG GR1803 Motor Grader
