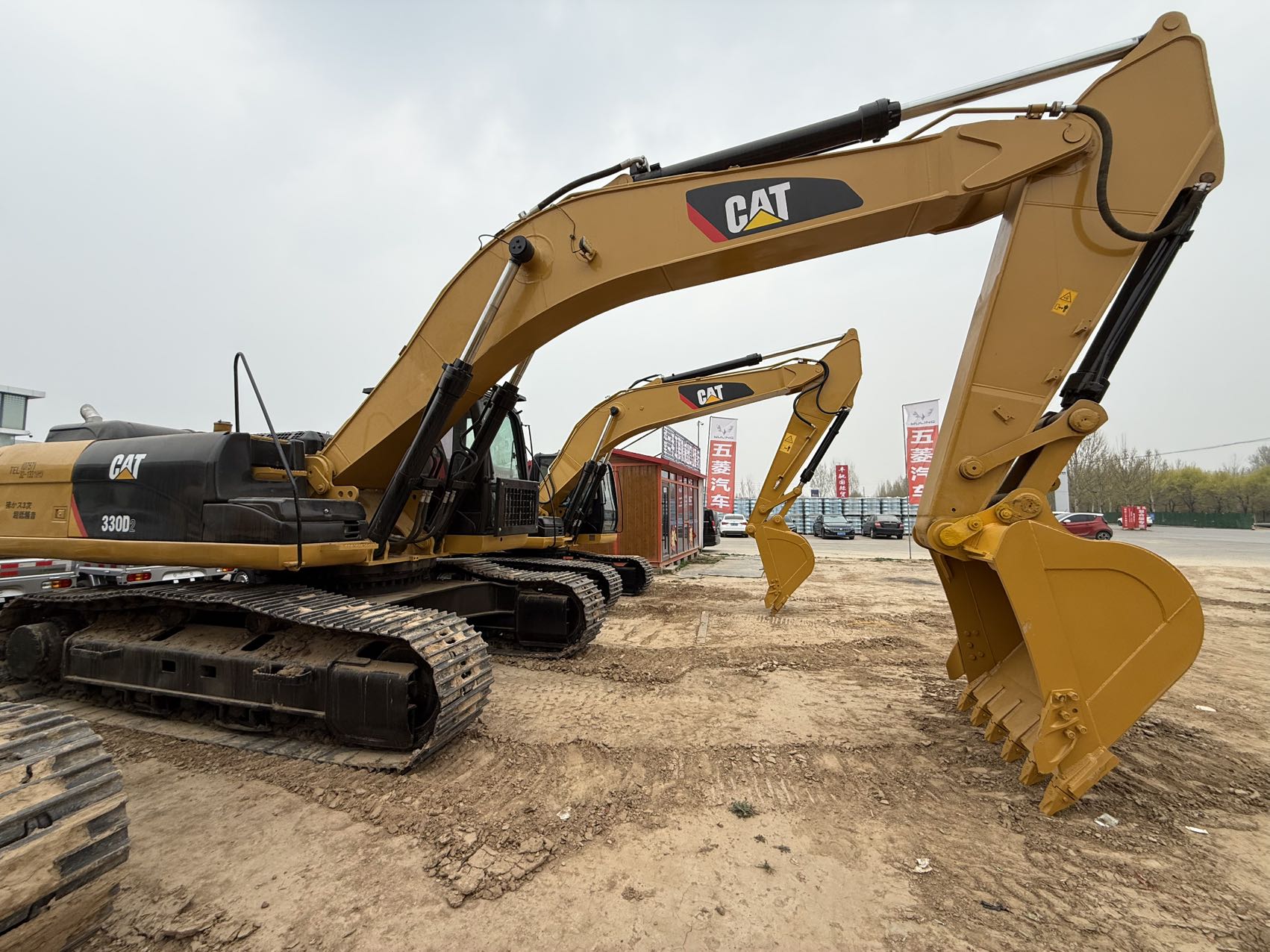

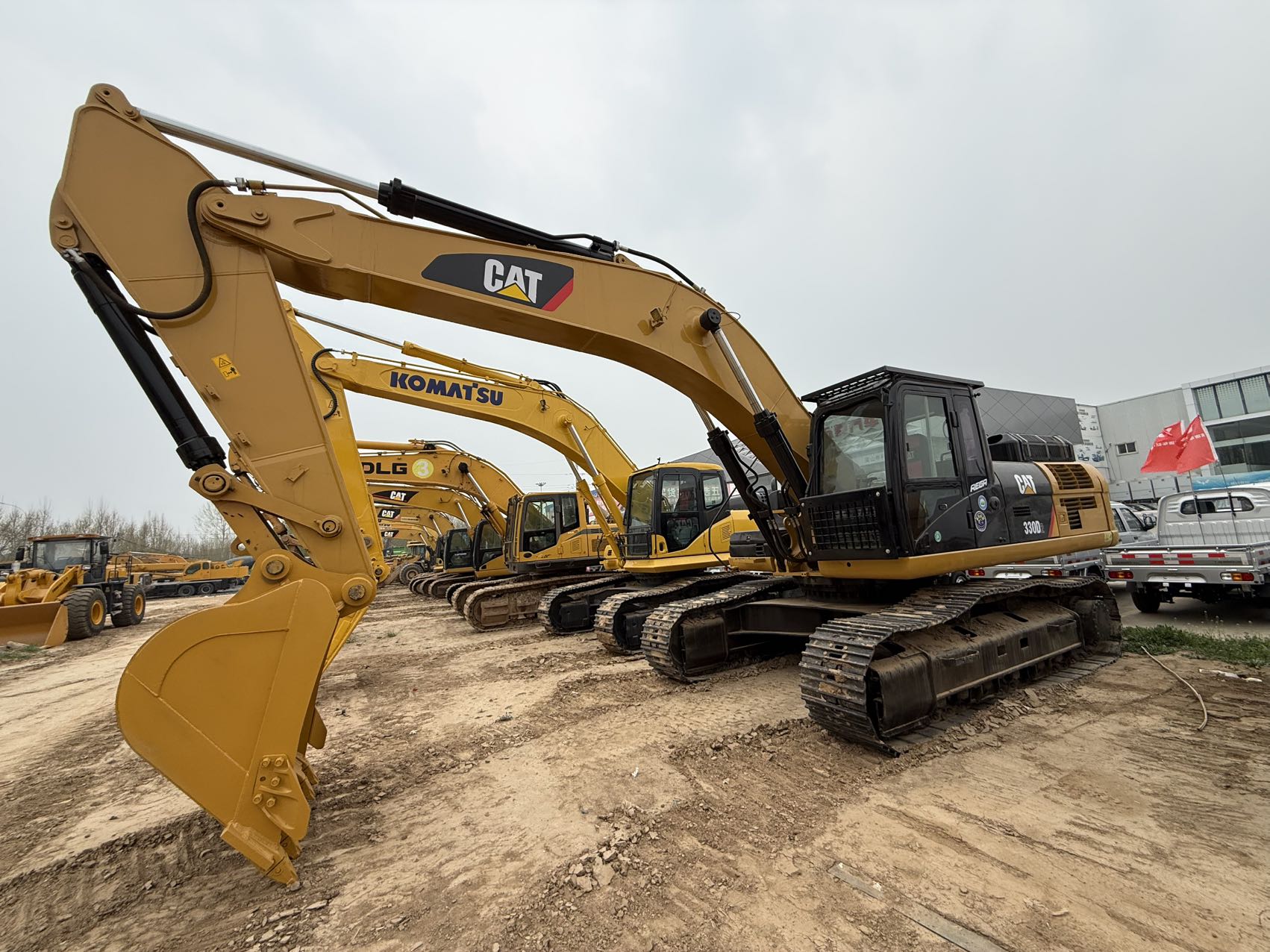

This high-quality used Caterpillar 330D excavator is a classic heavy-duty 33-ton crawler digger widely trusted for large-scale earthmoving, quarry mining, foundation excavation, road construction, and infrastructure projects worldwide. Famous for its robust structure, stable hydraulic performance, and long service life, the second-hand Cat 330D remains one of the most cost-effective heavy excavators for global construction buyers.

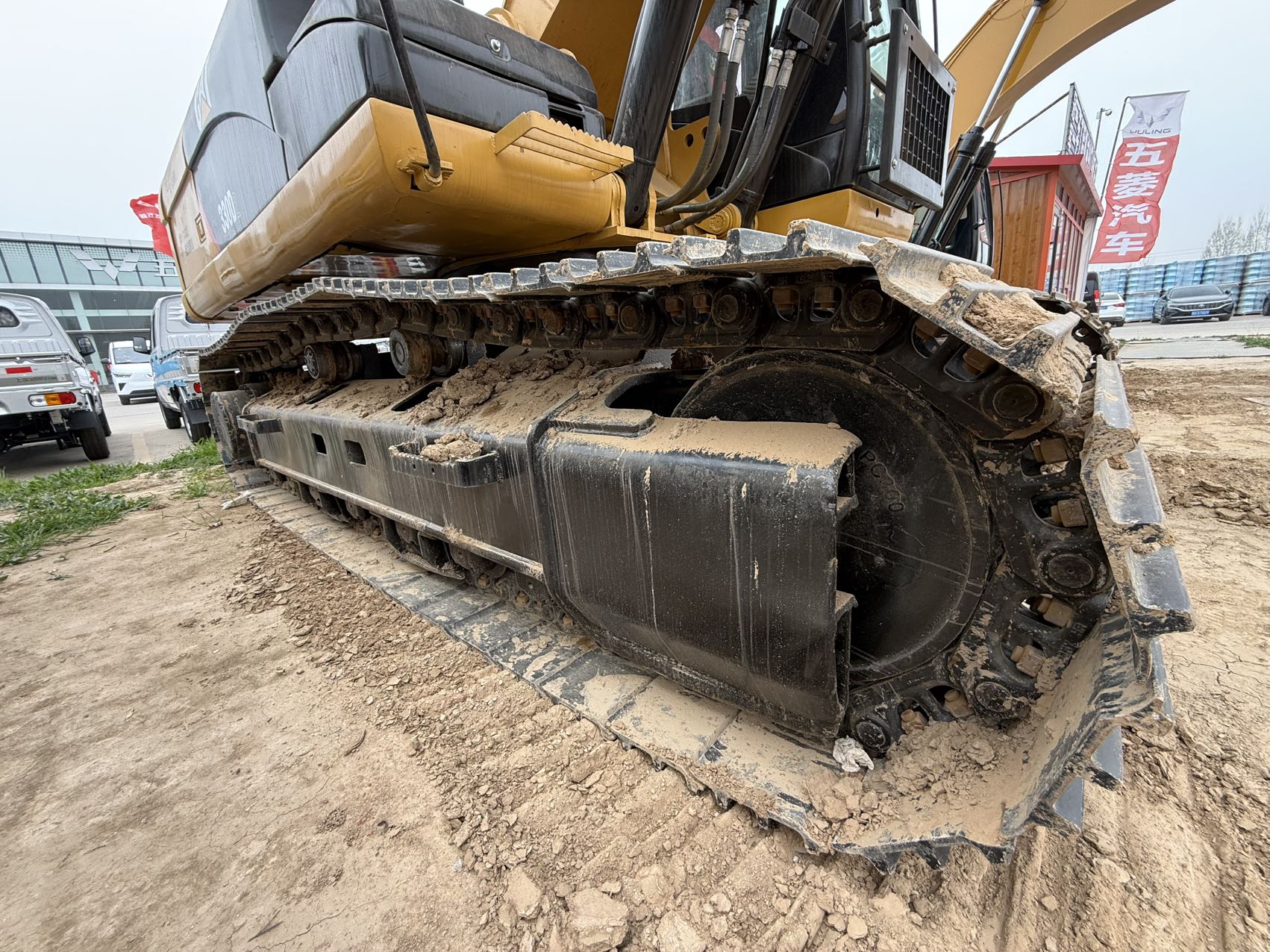

This Cat 330D excavator features a standard operating weight of 33.75 tons and a flexible bucket capacity ranging from 1.4 m³ to 2.0 m³, with a standard 1.8 m³ bucket for high-efficiency bulk material handling. Equipped with a 6.5 m boom and 3.2 m stick, it delivers extended working coverage and powerful digging ability. Its standard 700 mm track shoes ensure stable ground contact and excellent adaptability on uneven construction sites. The overall transport dimension is 11,150 × 3,190 × 3,340 mm, convenient for shipping and site transfer.

Powered by the original Cat C9 ACERT inline 6-cylinder water-cooled turbocharged diesel engine, this used Cat 330D provides a maximum rated power of 200 kW (270 hp) at 1800 rpm. With an 8.8 L displacement and 110 × 127 mm bore-stroke design, the engine outputs strong torque reserve, ensuring stable power delivery under continuous heavy-load working conditions. Matched with a large 620 L fuel tank, 175 L hydraulic tank, 40 L engine oil capacity and 40 L coolant capacity, the machine supports long-hour non-stop operation and reduces daily maintenance frequency.

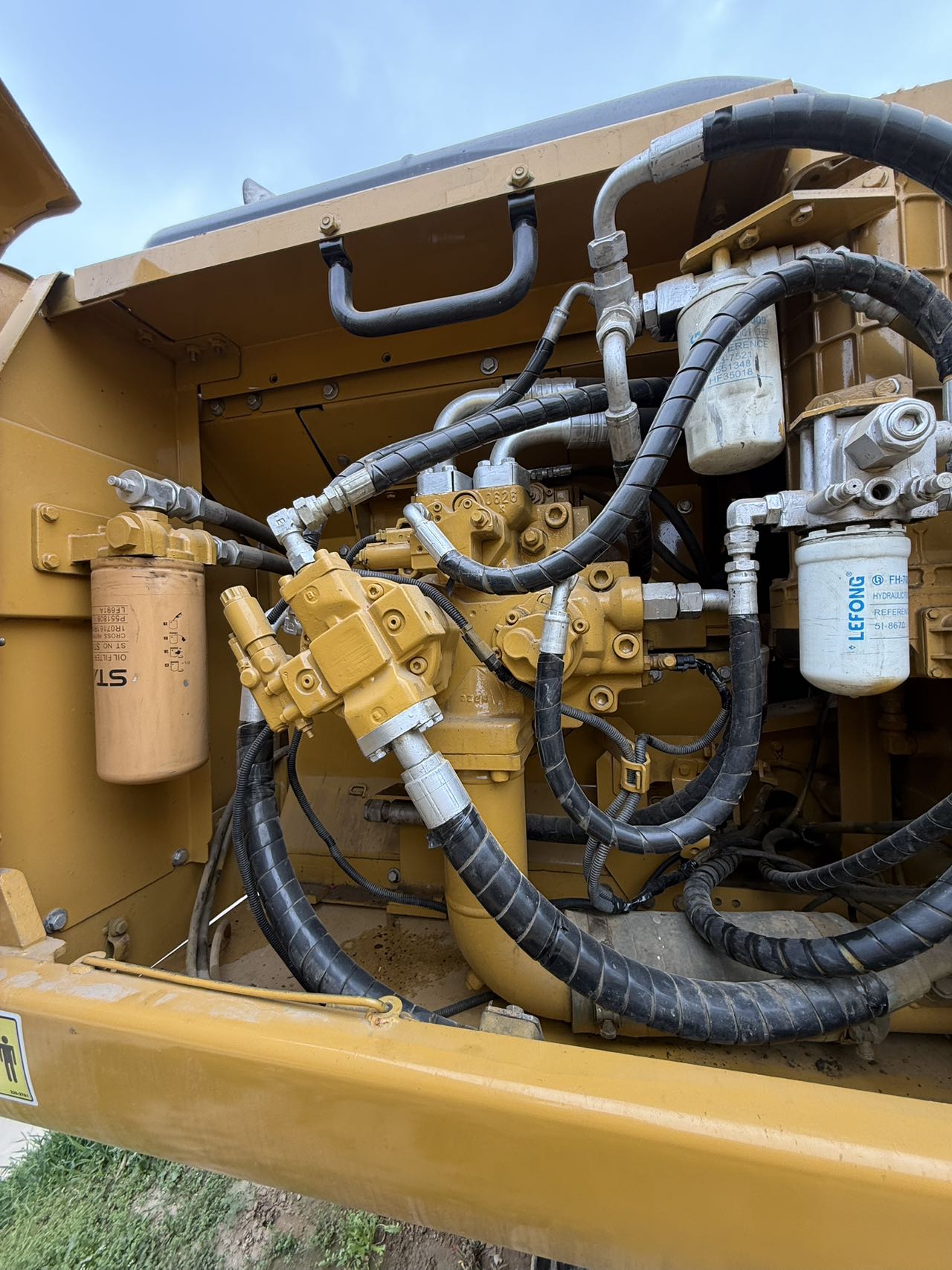

Equipped with Caterpillar’s mature load-sensing hydraulic system, the main pump flow reaches 280 L/min, with a main relief pressure of 35 MPa and swing circuit pressure of 28 MPa. It delivers a stick digging force of 146 kN, ensuring fast, smooth and powerful hydraulic responses. The machine runs steadily with a travel speed of approximately 5 km/h, a swing speed of 10 rpm and swing torque up to 80 kN·m, greatly improving overall construction efficiency.

The standard working range fully meets heavy engineering demands: maximum digging reach of 10,920 mm, maximum digging depth of 7,390 mm, maximum dumping height of 7,200 mm, and maximum digging height of 10,240 mm.

Fully inspected and well-maintained, this second-hand Caterpillar 330D excavator retains original core performance with low wear, low failure rate and excellent fuel economy. It offers outstanding cost performance and resale value for global buyers searching for reliable 33-ton used heavy excavators.
