Gebrauchter Radlader mit Strohgreifer

Gebrauchter Radlader mit Strohgreifer

Used Wheel Loader

Produktdetail

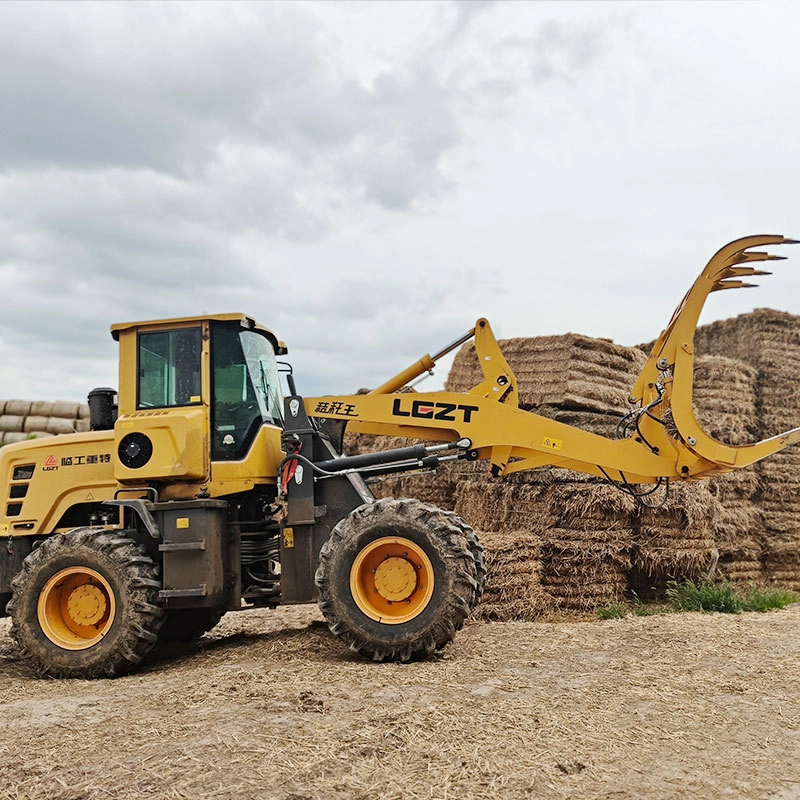

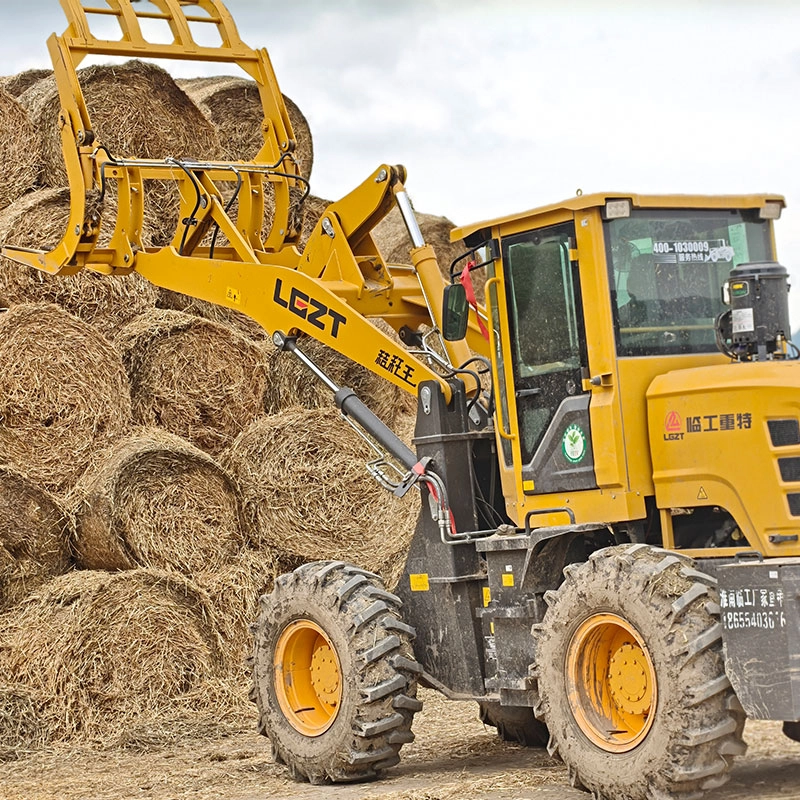

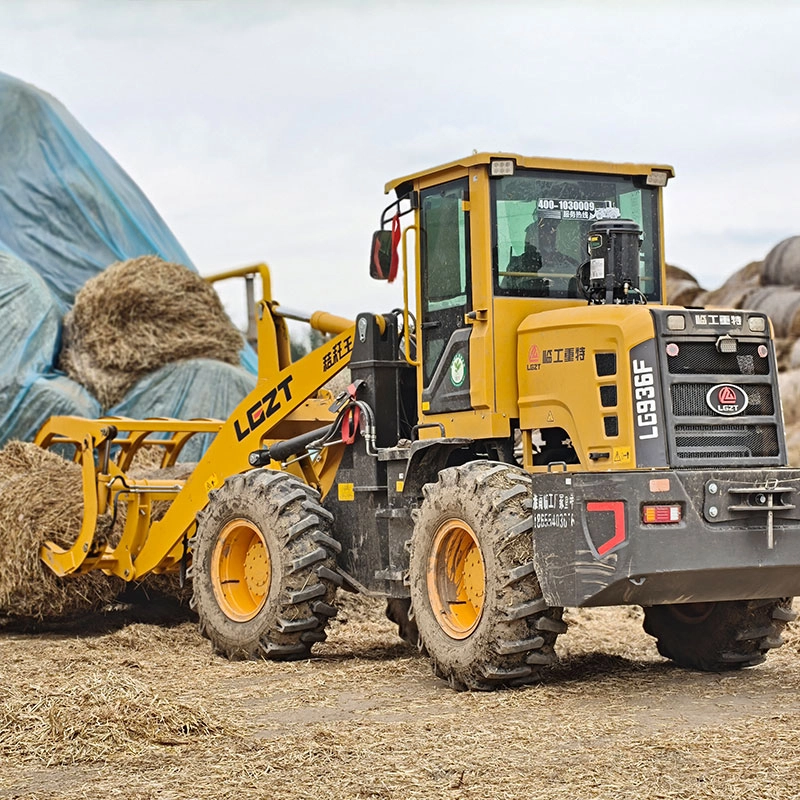

This used straw grapple wheel loader is a multi-functional agricultural and construction machinery, widely used for straw recycling, hay stacking, farm material handling, yard cleaning and light earthmoving work. Equipped with a professional hydraulic straw grapple attachment, this second-hand wheel loader delivers stable grabbing performance and high working efficiency, making it one of the most cost-effective pre-owned farm loaders for global agricultural and rural infrastructure projects.

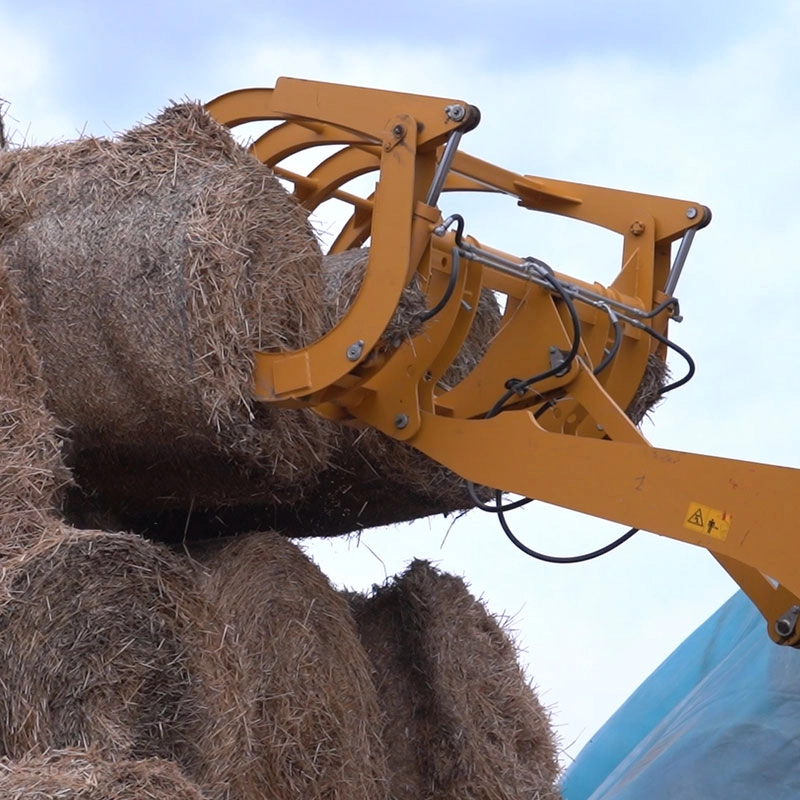

The machine features a rated load of 2000 kg and a standard 1.1 m³ bucket. The matched hydraulic straw grapple provides a 1800 mm wide clamping range, enabling large-volume and flexible straw grabbing and stacking. With a maximum breakout force over 60 kN and a maximum lifting height of 5400 mm, the loader supports high-position stacking and long-distance material discharging, greatly improving daily operation efficiency.

Powered by a reliable YN38CBF4 turbocharged diesel engine, this loader meets China Stage IV / Tier 3 emission standards, outputting 85 kW (114 HP) power and strong torque for stable performance under heavy-load and complex working conditions. The boom lifting time is within 6 seconds, ensuring sensitive and responsive hydraulic operation.

QUERY LENGTH LIMIT EXCEEDED. MAX ALLOWED QUERY : 500 CHARS

Spezifikationen

Arbeitsleistung

Nennlast: 2000 kg Standardschaufelkapazität: 1,1 m³ Optionaler Strohgreiferanbau: Hydraulischer Strohgreifer, Spannweite 1800 mm Maximale Ausbrechkraft: ≥60 kN Maximale Hubhöhe: 5400 mm Maximale Schütthöhe: 3600–3800 mm Kippreichweite: 600–800 mm Auslegerhubzeit: ≤6,0 s

Gesamtabmessungen und Gewicht

Betriebsgewicht: 6200 kg (mit montiertem Strohgreifer) Gesamtabmessungen (Länge × Breite × Höhe): 6950 mm × 2235 mm × 2970 mm Radstand: 2500 mm Spurbreite: 1690 mm Mindestbodenfreiheit: 400 mm Minimaler Wenderadius: 5200 mm Reifenspezifikation: 16/70-24

Motorsystem

Motormodell: YN38CBF4 Turbodieselmotor Emissionsstandard: China Stufe IV / Tier 3 Nennleistung: 85 kW (114 PS) / 2200 U/min Maximales Drehmoment: 420 N·m
