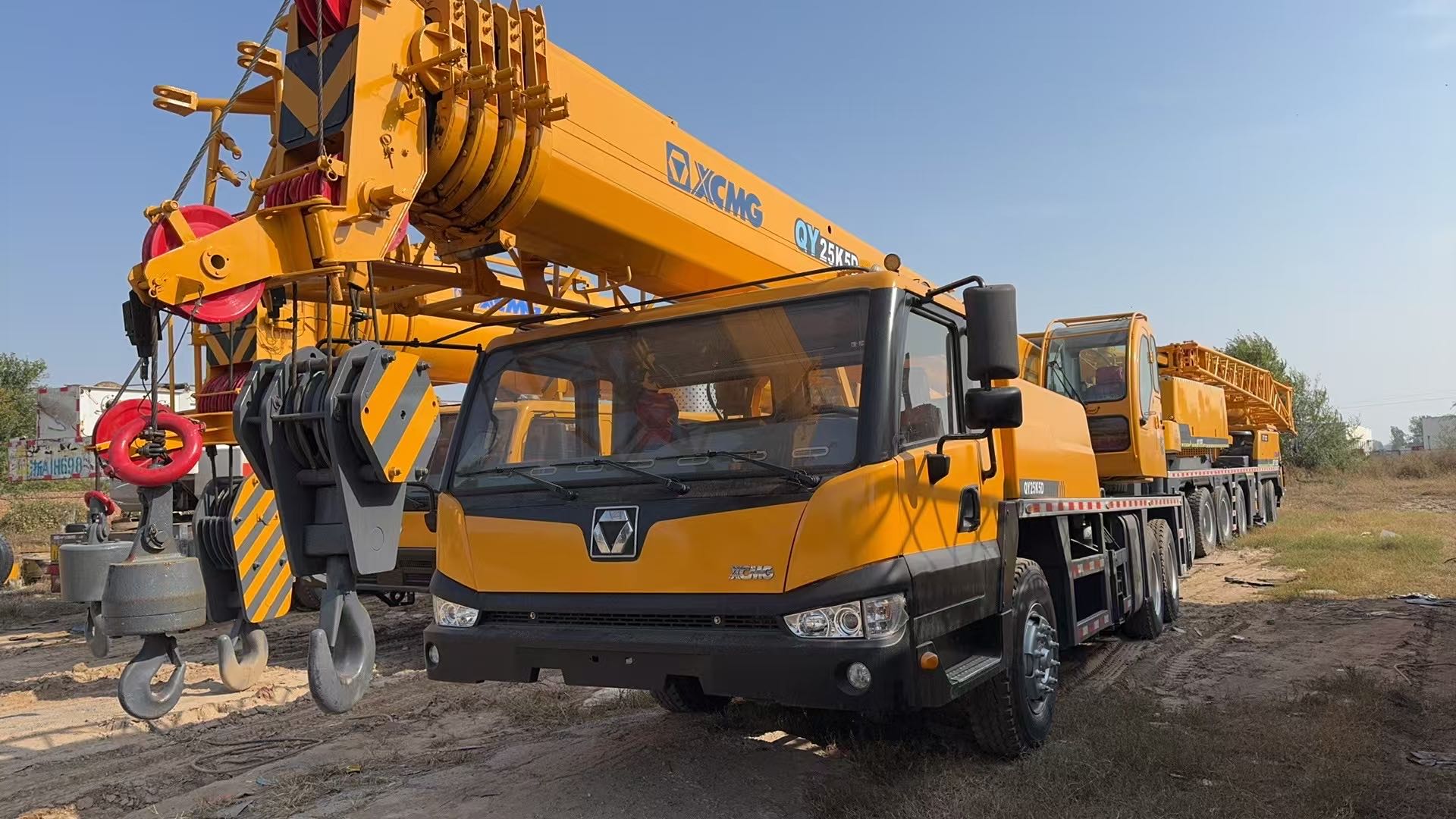

XCMG 25t truck crane is a classic medium-tonnage mobile lifting equipment independently developed by XCMG, the top construction machinery brand in China. With a rated lifting capacity of 25 tons, it balances strong lifting performance, flexible road transit and reliable durability, widely adopted in municipal engineering, bridge construction, factory installation, port handling and small mining projects.
Equipped with high-strength U-type telescopic boom, the machine delivers long working radius and high lifting height. Matched with energy-saving dual-pump confluence hydraulic system and full proportional pilot control, it realizes ultra-low micro-speed lifting for precise hoisting. The powerful low-speed high-torque diesel engine supports fast highway transfer and great gradeability on rugged construction sites.
Fitted with H-type extendable outriggers, intelligent load moment limiter and full-range safety interlock protection, the crane eliminates overload risks. The spacious, noise-insulated operation cab with air conditioning greatly reduces operator fatigue during long shifts. Featuring easy centralized maintenance and global spare parts supply network, XCMG 25t truck crane remains the most cost-effective mainstream lifting machine for rental and engineering companies worldwide.

Specifications

1. Core Lifting Parameters

  1. Max rated lifting capacity: 25 t (at 3 m working radius)
  2. Main boom: 5-section U-shaped telescopic boom, full length 41 m; basic boom length 10.8 m
  3. Standard fixed fly jib: 7.5 m
  4. Maximum lifting height
    • Full main boom: 40.6 m
    • Main boom + fly jib: 48.5 m
  5. Max lifting moment at basic boom: 1148 kN·m
  6. Minimum working radius: 3 m
  7. Standard counterweight: 6 t (self-dismountable counterweight)
  8. Main hook reeving: 5-part line; rated lifting capacity of auxiliary hook: 3 t

2. Overall Dimensions & Chassis

  • Overall dimensions (L × W × H): 13007 × 2550 × 3490 mm
  • Wheelbase: 4500 + 1350 mm
  • H-type outriggers, outrigger span: transverse 6.4 m × longitudinal 5.5 m
  • Total curb weight for transportation: 33270 kg (33.27 tons)
  • Axle load: 1st axle 7400 kg, middle & rear axles each 13000 kg
  • Minimum turning diameter: 21 m, turning radius: 10.5 m
  • Approach angle: 11°, departure angle: 13.5°, minimum ground clearance: 260 mm

3. Travel Power Configuration (Two Original Engine Options)

Version 1: Shangchai SC9DF300.1Q5 (Mainstream for construction sites)

  • Inline 6-cylinder National Stage V electronically controlled diesel engine
  • Rated power / speed: 221 kW / 2200 rpm
  • Maximum torque / speed: 1250 N·m / 1400 rpm
