SDLG L956

SDLG L956

SDLG L956

Wheel Loader

Product Detail

The SDLG L956 is a heavy-duty 5-ton wheel loader developed by Shandong Lingong Construction Machinery (SDLG), covering multiple variants including LG956L, L956F, L956HL, LNG gas-powered model and L956HEV pure electric loader.
Equipped with a Weichai high-power diesel engine and three adjustable power modes (Power/Standard/Economy), it balances high productivity and low fuel consumption. Adopting long wheelbase reinforced frame and magnetic suspension overrunning clutch transmission, the machine features strong traction, great breakout force and stable operation under heavy loads.
Dual-pump combined flow hydraulic system delivers smooth, fast lifting and dumping movements with pilot control for light operation. The large-capacity bucket suits sand yards, mixing plants, coal yards, quarries and infrastructure construction. Easy maintenance, widely available spare parts and high residual value make it a top choice for construction and material handling businesses worldwide.

Specifications

1. Overall Mass & Dimensions

  • Operating weight: 17,000～17,250 kg
  • Rated load capacity: 5,500 kg
  • Standard bucket capacity: 3 m³
  • Overall dimensions (L × W × H): 8,430 × 3,024 × 3,382 mm
  • Wheelbase: 3,200 mm; Track width: 2,190 mm
  • Minimum ground clearance: 457 mm

2. Working Equipment Performance

  • Max dumping height: 3,180～3,700 mm
  • Dumping reach: 1,090～1,160 mm
  • Breakout force: 180 kN
  • Total three-function cycle time of working device: ≤11 s

3. Travel & Traction Performance

  • Maximum rimpull: ≥167 kN
  • Maximum gradeability: 30°
  • Steering angle: 38°
  • Travel speed:
    • 1st gear (Forward / Reverse): 0~12.0 / 0~15.8 km/h
    • 2nd gear (Forward): 0~37.8 km/h

4. Engine

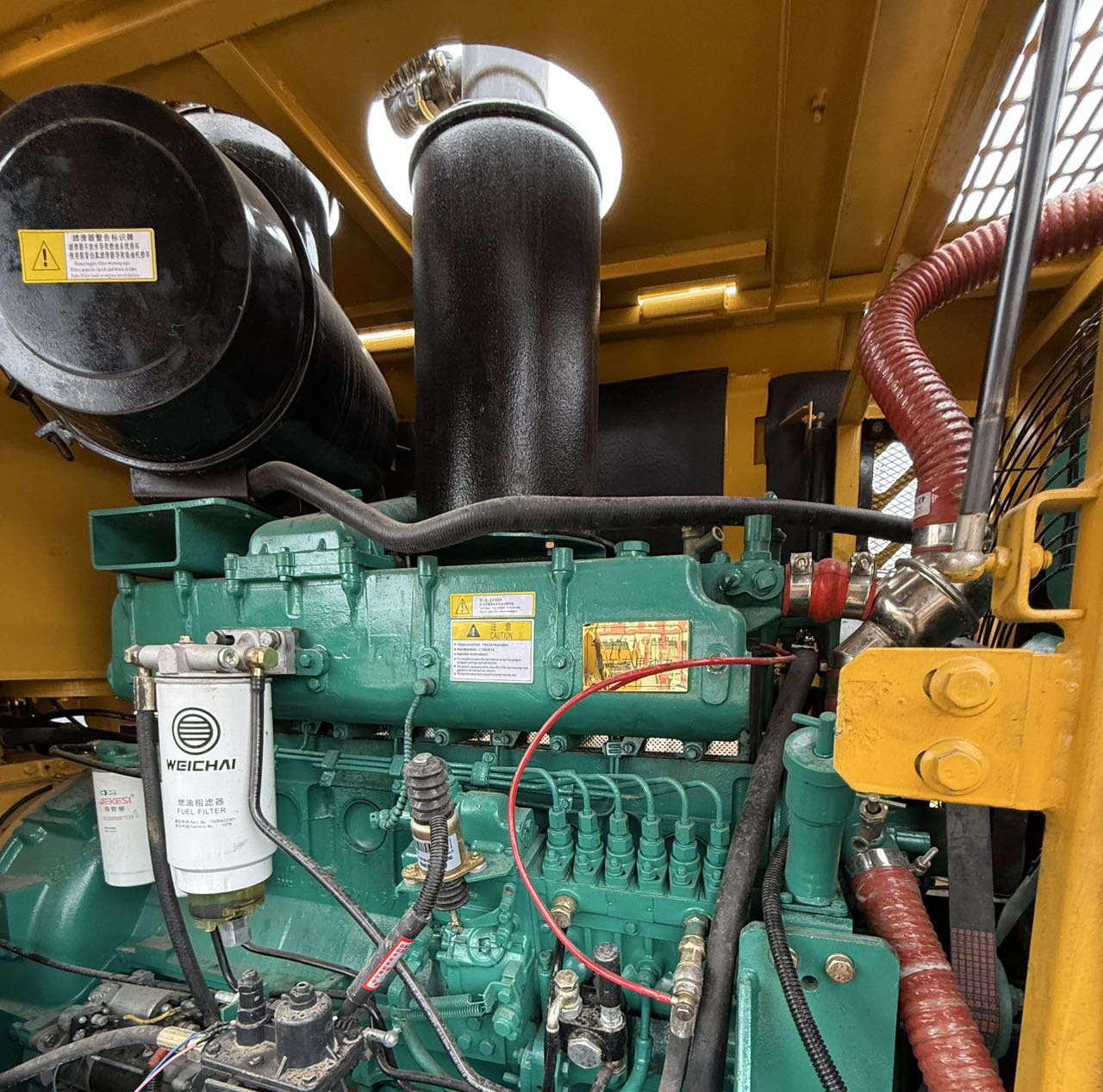

  • Model: Weichai WD10G220ENG33 (Inline, water-cooled, dry cylinder liner)
  • Rated power / Rated speed: 162 kW / 2000 rpm
  • Maximum torque: 930 N·m
